Ideal MSC-18K-X-472 Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)

Write a Review
SKU:
MSC-18K-X-472
UPC:
MSC-18K-X-472
Availability:
FACTORY SHIPPED
Shipping:
Calculated at Checkout
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
  • Ideal MSC-18K-X-472  Single Mobile Column Lift System 72,000 Lbs. Capacity (Set of 4)
$45,500.00
$42,399.00
— You save $3,101.00

Description

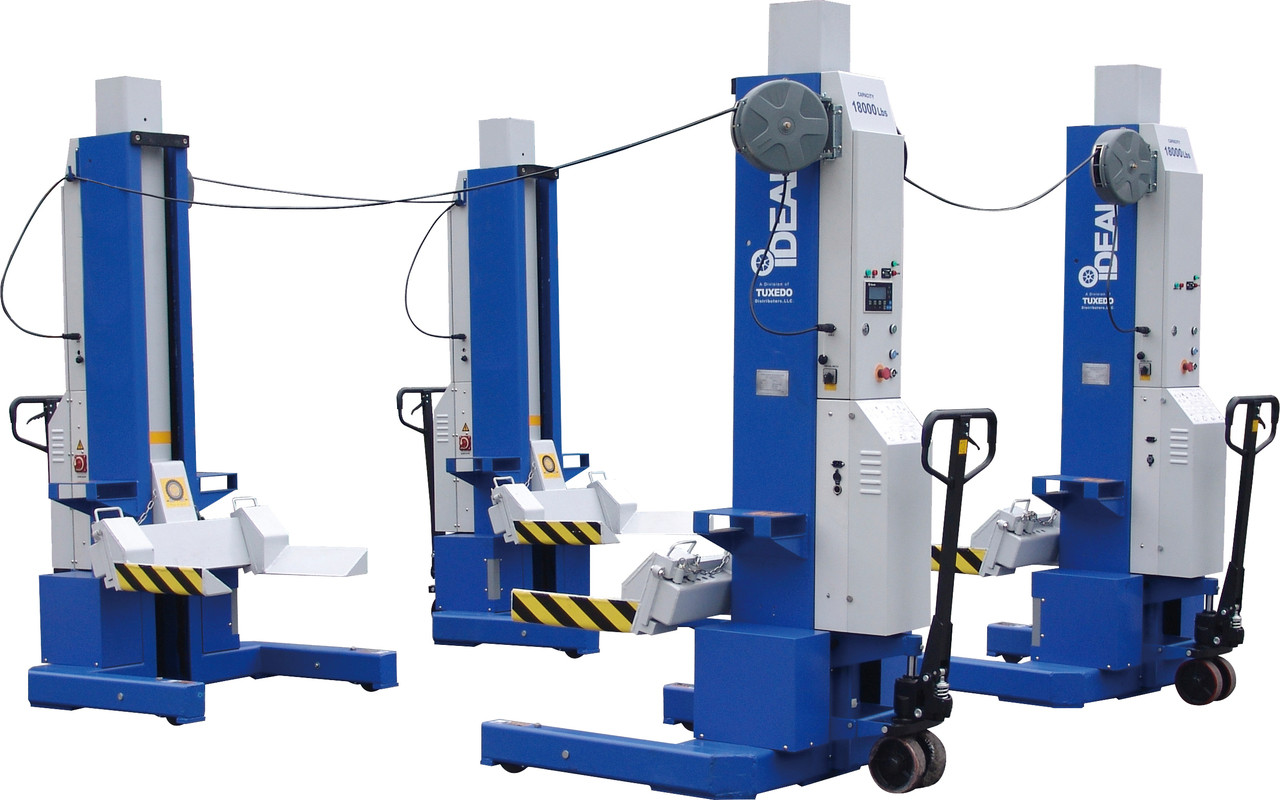

Ideal MSC-18K-X-472 Single Mobile Column Lift 72,000 Lbs. Capacity (Set of 4 Columns)

Also available in sets of 2- or 6 Columns.



pdf.catalog.jpg  pdf.instructions.jpg etl.jpg ali-etl-logo.jpg



msc-18k-b

  • Click here for optional 18,000 Lbs Capacity Jack Stands





    Features



    • ALI certified
    • 24VDC Battery Operation with Onboard Charging System
    • Communication Cable with Retractable Cable Reels
    • U-Shape Wiring Configuration for quick vehicle entry & exiting
    • Convenient Operation from any Column
    • Independent Mechanical Locking System
    • PLC & Optical Encoder provides continuous synchronization for Columns
    • Easily positioned with Pallet Jack type device with Poly Caster Wheels
    • Adjustable Lifting Forks for the widest range of Wheel Diameters
    • Emergency Switch per each Column, provides the highest safety assurance
    • Easy to use Master Control Panel for Individual or Paired Synchronized Operation
    • LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
    • Conveniently stored out of the way when not in use to maximize work space
    • Available in Two, Four or Six Column Configurations
    • New! LED Light with Magnetic Base for each Column!!
    • New! Optional MSC ALI Certified Accessories available!!





    iDeal Lift MSC-18K-X-236 18,000lb. Per Mobile ALI Column Lifting System (Set of 2)

    ALI CertifiedSold in Sets of 2 (MSC-18K-X-236), 4 (MSC-18K-X-472) or 6 (MSC-18K-X-6108)



    Each column is capable of lifting 18,000 pounds. In a tandem of 2, that means 36,000 pounds of lifting capacity.

    The iDeal MSC-18K-X is available in sets of two, four and six columns to provide up to 108,000lbs. of lifting capacity. The MSC-18K-X is designed to lift fire trucks, school buses and other large commercial vehicles by the wheels. Optional accessories provide the flexibility to lift pickup trucks and wheels free lifting for expanded service. Technicians realize improved productivity through safe, simple operation of the lift at each column using the well-designed control panel. The mobile design and quick set up of the MSC-18K-X allows technicians to easily transform a flat bay to a lift bay for improved use of shop space. The small foot print of the MSC-18K-X allows for storage without impacting valuable shop space.







    • 18,000 lb lifting capacity per column. 2 Columns total capacity 36,000 lbs
    • Sold in Sets of 2 (MSC-18K-X-236), 4 (MSC-18K-X-472) or 6 (MSC-18K-X-6108)
    • 24VDC Battery Operation with Onboard Charging System Batteries are NOT Included
    • Communication Cable with Retractable Cable Reels
    • U-Shape Wiring Configuration for quick vehicle entry & exiting
    • Convenient Operation from any Column
    • Independent Mechanical Locking System
    • PLC & Optical Encoder provides continuous synchronization for Columns
    • Easily positioned with Pallet Jack type device with Poly Caster Wheels
    • Adjustable Lifting Forks for the widest range of Wheel Diameters
    • Emergency Switch per each Column, provides the highest safety assurance
    • Easy to use Master Control Panel for Individual or Paired Synchronized Operation
    • LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
    • Conveniently stored out of the way when not in use to maximize work space
    • New! LED Light with Magnetic Base!!
    • New! Optional MSC ALI Certified Accessories available



    •

      Specifications
      MSC-18K-X-236
      MSC-18K-X-472
      MSC-18K-X-6108
      Capacity Per Column
      18,000 lbs.
      Total Capacity
      36,000 lbs.
      72,000 lbs.
      108,000 lbs.
      Lifting Height
      67.1"
      Column Height
      Min 88.6" / Max 155.5"
      Column Width
      44.1"
      Fork Adjustable Range
      12.6" - 22"
      Fork Length
      17.9"
      Fork to Column Clearance
      10"
      Lifting / Lowering Time
      100 seconds / 60 sec at load of 18,000 lbs each column
      Max Distance Betwwen Columns
      32' 8"
      Min Concrete Surface Strength
      3,000 Psi
      Set-Up Operation
      Indoor
      Charging Voltage Input
      100-140 V / 6oHz / Single Phase
      Charging Voltage Output
      24VDC, Max 15 Amp
      *Battery Type (Recommended)
      12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105
      *Battery NOT Included
