Lift Installation

  Installation Services

If you purchase a Lift from us we will help to find an installer to have your lift installed.
By independent certified  Lift Installers






Concrete Requirements 2-Post Lifts

Lifting Capacity Concrete Thickness PSI of the Concrete
7,000-10,000 lbs Minimum 4" 3,000-PSI
12,000-15,000 lbs Minimum 6" 3,000-PSI
18,000 lbs Minimum 8" 3,000-PSI



Four Post Lifts Concrete Requirements

Lifting Capacity Concrete Thickness PSI of the Concrete
12,000 lbs Minimum 4" 2,500-PSI
18,000 lbs      Minimum 4-1/2" 2,500-PSI
27,000 lbs Minimum 5" 2,500-PSI
35,000 lbs Minimum 6" 2,500-PSI
40,000 lbs Minimum 6" 2,500-PSI



Installation Services

By independent certified Lift Installers

Note: We only offer Lift installation to customers
purchasing a Lift from MyToolGuy.com.

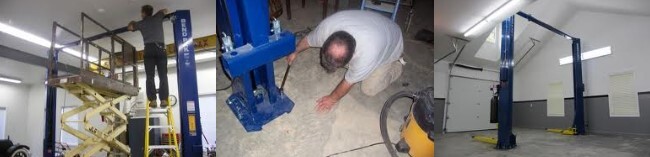

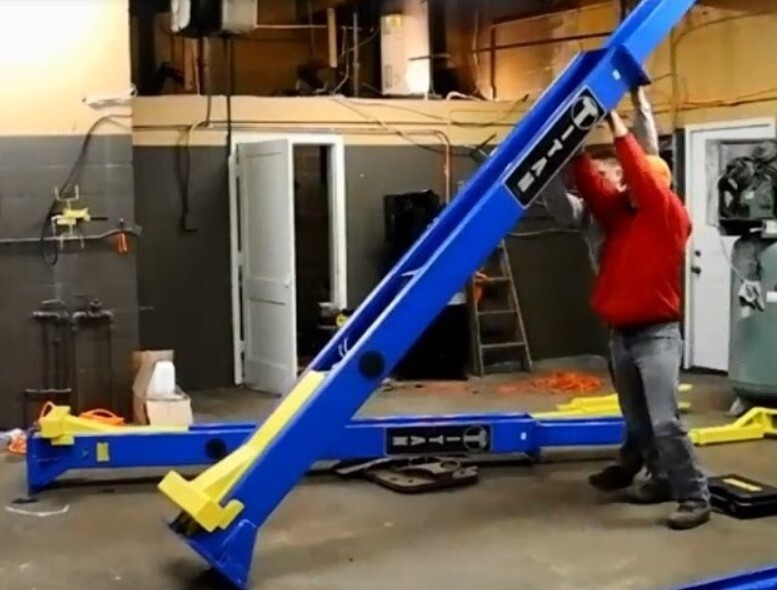

We offer installation services for automotive lifts, to help you get your lift installed and into operation as quickly and smoothly as possible. When you order the installation option, we will manage the complete delivery and installation process (within the continental United States). This service can help you get the most for your money, whether your lift will be used as a parking lift, or for general service. For more information, options, and pricing, call 203-813-0414 or email us at: sales@mytoolguy.com

 Installation -  Upon request, we can provide you with the name of a local installer to install your automotive lift for you. We offer these as a reference and a convenience to our customers. These installers are independent, third party contractors, that you, the customer decide to hire or not. These installers are not agents, partners, nor are they employed by The Tool ConnectionThe Tool Connection disclaims any guarantee, warranty or promise, whether implied or expressed by the installer / contractor regarding their workmanship, fitness for a particular purpose, or the materials the independent contractor will use. We provide installer quotes for informational purposes only. Ultimately, it is your, (the customer's) decision on whether or not to hire them. We do not advise or recommend you to use any particular contractor. Using these installers is the customer's choice, and means that the customer assumes all risk and The Tool Connection assumes no liability whatsoever for any damages or loss.. We will gladly obtain quotes from these installers / contractors on your behalf, merely as a convenience to you.

HOW MUCH WOULD IT COST FOR A PROFESSIONAL INSTALLER TO INSTALL MY NEW LIFT?

Professional lift installation pricing depends on several factors. It is best to contact us to assist you in finding the right installer at the right price.

The following prices are estimates only and do not included any accessorial charges, including electrical, air, unloading or special handling. If you would like to have a lift installed at your location, please contact our customer service department.



The following prices are estimated only.

Two-Post Lift Models
9k – 10k Models / $495.00 - $650.00
12k – 18k Models / $695.00 - $850.00
Four-Post Lift Models
9k Models / $395.00 - $550.00
14k Standard Models / $550.00 - $700.00
14k Alignment Models / $695.00 - $850.00
18k – 27k Standard Models / $795.00 - $950.00
18k – 27k Alignment Models / $895.00 - $1,050.00
35k – 40k Standard Models / $995.00 - $1,150.00
Scissors Alignment Models
Scissors Alignment / $850.00 - $1,000.00



DOES MY LIFT COME WITH THE NECESSARY ANCHOR BOLTS AND / OR HARDWARE TO MOUNT IT TO THE FLOOR?

All BendPak lifts ship with the necessary anchors required for mounting the unit to your floor.

DOES HYDRAULIC FLUID COME WITH THE LIFTS?

Due to current DOT and insurance laws regarding the transport of hydraulic oils (DOT Section 1 - Hazardous Ingredients; DOT Section 2 - Fire and Explosion Hazards and DOT Section 3 - Health Hazards) the required hydraulic fluid is to be supplied by the end-user, only. BendPak lifts are designed to operate using standard 10-weight, non-foaming, non-detergent hydraulic oil or Dexron-III ATF fluid. This is available in virtually any automotive store.

DO I NEED A SPECIAL FLOOR OR FOUNDATION TO SUPPORT MY NEW LIFT?

Most residential or commercial foundations are strong enough to support BendPak lifts. However, it is important to adhere to concrete specifications. Failure to do so could cause lift failure resulting in personal injury or death.

A level floor is suggested for proper installation and level lifting. With proper shimming, small differences in floor slopes may be compensated for. If a floor is of questionable slope, consider a survey of the site and / or the possibility of pouring a new level concrete slab.

Be sure to check your floor for the possibility of it being a post tension slab. In this case, contact the building architect before drilling. Visually inspect the site where the lift is to be installed and verify the concrete is in good condition. If your concrete has cracks or other defects, please consult with a certified contractor before proceeding to install any BendPak lift.

Lift owners and end users are responsible for the safe installation of their lift. The figures below represent suggested concrete specifications, but should not be construed as actual requirements for your building, facility or application. Because local and statewide building codes may change and / or vary, always check with the building architect before installation for additional guidance on UBC compliance requirements. In no event shall BendPak Inc. be liable for special, consequential or incidental damages for the misinterpretation of this information. BendPak Inc. reserves the right to make changes to this document without incurring any obligation to notify the public that changes were made.

4-POST LIFTS

DESCRIPTION

MIN. CONCRETE SPECS

HD-9ST-B

9,000-lb. Capacity / Four Post Lift / Narrow Width

3-1/2" Min. Thickness / 2,500 psi

HD-9-B

9,000-lb. Capacity / Four Post Lift /  Standard Width

3-1/2" Min. Thickness / 2,500 psi

HD-9STX-B

9,000-lb. Capacity / Four Post Lift / Narrow Width

3-1/2" Min. Thickness / 2,500 psi

HD-9XW-B

9,000-lb. Capacity / Four Post Lift /  Standard Width

3-1/2" Min. Thickness / 2,500 psi

HD-14SS

14,000-lb. Capacity / Space Saver

4" Min. Thickness / 2,500 psi

HD-14

14,000-lb. Capacity / Extended

4" Min. Thickness / 2,500 psi

HD-14X

14,000-lb. Capacity / Extended / Limo Style

4" Min. Thickness / 2,500 psi

HD-14STL

14,000-lb. Capacity Tall Lift / Space Saver / 82" Rise

4" Min. Thickness / 2,500 psi

HD-14ETL

14,000-lb. Capacity Tall Lift / Extended / 82" Rise

4" Min. Thickness / 2,500 psi

HD-18

18,000-lb. Capacity / Standard

4" Min. Thickness / 2,500 psi

HD-27

27,000-lb. Capacity / Standard

4" Min. Thickness / 2,500 psi

HD-27X

27,000-lb. Capacity / Extended

4" Min. Thickness / 2,500 psi

HD-35

35,000-lb. Capacity / Standard

5" Min. Thickness / 2,500 psi

HD-35X

35,000-lb. Capacity /  Extended

5" Min. Thickness / 2,500 psi

HD-40

40,000-lb. Capacity / Standard

5" Min. Thickness / 2,500 psi

HD-40X

40,000-lb. Capacity /  Extended

5" Min. Thickness / 2,500 psi

HD-14LS

14,000-lb. Capacity / Alignment

4" Min. Thickness / 2,500 psi

HD-14LSX

14,000-lb. Capacity / Alignment /  Extended

4" Min. Thickness / 2,500 psi

HD-14LSXE

14,000-lb. Capacity / Alignment /  Limo  Extended

4" Min. Thickness / 2,500 psi

HDO-14LSX

14,000-lb. Capacity / Alignment /  Extended / Open Front

5" Min. Thickness / 2,500 psi

HD-18A

18,000-lb. Capacity / Alignment

4" Min. Thickness / 2,500 psi

HD-27A

27,000-lb. Capacity / Standard / Alignment

4" Min. Thickness / 2,500 psi

HD-27XA

27,000-lb. Capacity / Extended / Alignment

4" Min. Thickness / 2,500 psi

HD-35A

35,000-lb. Capacity / Alignment

5" Min. Thickness / 2,500 psi

HD-35XA

35,000-lb. Capacity / Extended / Alignment

5" Min. Thickness / 2,500 psi

XR-12AE

12,000-lb. Capacity / Scissors Alignment

4" Min. Thickness / 2,500 psi

2-POST LIFTS

DESCRIPTION

MIN. CONCRETE SPECS

XPR-9F

9,000-lb. Capacity / Floorplate / Chain-Over / Narrow

4" Min. Thickness / 3,000 psi

XPR-9FX

9,000-lb. Capacity / Floorplate / Chain-Over / Wide

4" Min. Thickness / 3,000 psi

XPR-9FD

9,000-lb. Capacity / Floorplate / Direct-Drive / Narrow

4" Min. Thickness / 3,000 psi

XPR-9FDX

9,000-lb. Capacity / Floorplate / Direct-Drive / Wide

4" Min. Thickness / 3,000 psi

XPR-12FD

12,000-lb. Capacity / Floorplate / Direct-Drive

6" Min. Thickness / 3,000 psi

XPR-10C

10,000-lb. Capacity / Clearfloor / Narrow

4" Min. Thickness / 3,000 psi

XPR-10CX

10,000-lb. Capacity / Clearfloor / Wide

4" Min. Thickness / 3,000 psi

XPR-10AC

10,000-lb. Capacity / Asymmetric Clearfloor / Narrow

4" Min. Thickness / 3,000 psi

XPR-10ACX

10,000-lb. Capacity / Asymmetric Clearfloor / Wide

4" Min. Thickness / 3,000 psi

XPR-12C

12,000-lb. Capacity / Clearfloor / Triple-Telescope Arms

6" Min. Thickness / 3,000 psi

XPR-15C

15,000-lb. Capacity / Clearfloor / Standard Arms

6" Min. Thickness / 3,000 psi

XPR-18C

18,000-lb. Capacity / Clearfloor / Standard Arms

8" Min. Thickness / 3,000 psi

SCISSOR LIFTS

DESCRIPTION

MIN. CONCRETE SPECS

XR-12AE

12,000-lb. Capacity / Scissors / Alignment  / Extended

4" Min. Thickness / 2,500 psi

SP-7X

7,000-lb. Capacity / Scissors / Full-Rise Platform Style

4" Min. Thickness / 2,500 psi

SPECIALTY LIFTS

DESCRIPTION

MIN. CONCRETE SPECS

PL-6SP / PL-6000

6,000-lb. Capacity Single Post Parking Lift / Deck

4" Min. Thickness / 3,000 psi

PL-6SPX / PL-6000X

6,000-lb. Capacity Single Post Parking Lift / Deck / Extended Rise

4" Min. Thickness / 3,000 psi

PL-7 / PL-7000

7,000-lb. Capacity / Two-Post Parking Lift / Deck / Standard Rise

4" Min. Thickness / 3,000 psi

PL-7X / PL-7000X

7,000-lb. Capacity / Two-Post Parking Lift / Deck / Extended Rise

4" Min. Thickness / 3,000 psi

LR-60 / LR-6000

6,000-lb. Capacity / Low-Rise Lift

3-1/2" Min. Thickness / 2,500 psi

LR-60P / LR-6000P

6,000-lb. Capacity / Low-Rise Lift / Portable

3-1/2" Min. Thickness / 2,500 psi

MD-6XP

6,000-lb. Capacity / Mid-Rise / Frame Lift / Portable

3-1/2" Min. Thickness / 2,500 psi

P-6 / P-6000

6,000-lb. Capacity / Low-Rise Lift / Pit-Style

3-1/2" Min. Thickness / 2,500 psi

P-6F/ P-6000F

6,000-lb. Capacity / Low-Rise Lift / Pit-Style / Flush Mount

3-1/2" Min. Thickness / 2,500 psi

WHAT IS THE CEILING HEIGHT REQUIRED FOR A BENDPAK LIFT?

The required ceiling height will vary depending on the lift model, as well as the intended vehicle. Please refer to the product specification page for each product for further details.
