Ideal MSC-13K-B 2 x Single Mobile Column Lift System 26,000 Lbs. Capacity

Write a Review

SKU:: MSC-13K-B-226
UPC:: MSC-13K-B-226
Availability:: FACTORY SHIPPED
Shipping:: $1,500.00 (Fixed Shipping Cost)

On Sale

$18,130.00

$18,199.00

Current Stock:

Quantity:

Description
Reviews (0)

Description

Ideal MSC-13K-B Single Mobile Column Lift 52,800 Lbs.Capacity (Set of 2 Columns) (13,200 each Column)

(DC Motor)

iDEAL Standard Features:

Easy to use master controller for 2, 4 or 6 column configuration
Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
Adjustable lifting forks accommodate the widest range of wheels
Easily positioned with pallet jack style wheel
Heavy-duty hydraulic system
Large carriage bearings provide durable, fast and easy lifting
LCD screen with keyboard offers easy to read visuals of settings and lifting height
Independent mechanical locking system
Emergency switch on each column provide highest safety assurance
Optional jack stands available

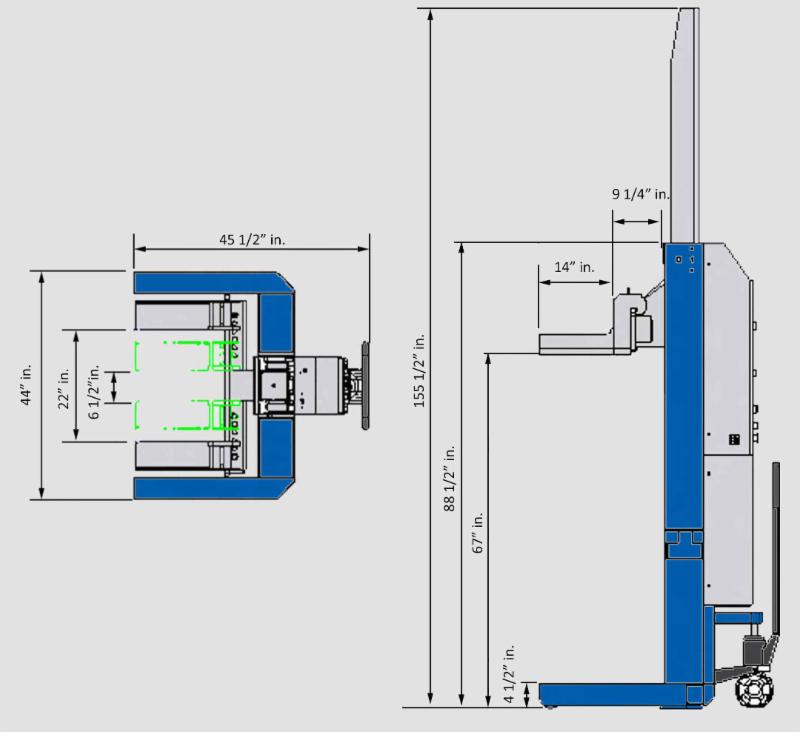

Specifications	MSC-13K-B
Capacity Per Column	13,200 lbs.
Overall Height	88.5"
Overall Width	44"
Maximum Distance Between Columns	32'-8"
Fork Length	14"
Lifting/Lowering Time	75/60 sec
Power Pack	24VDC/3HP
Noise Level	70dB(A)
Net Weight	1,210 lbs Per Column

Click here for optional 20,000 Lbs Capacity Jack Stands

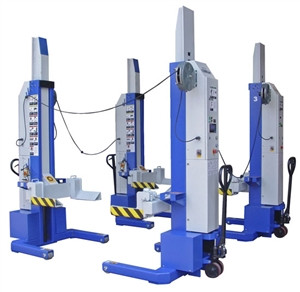

iDeal Lift MSC-13K-B 13,200lb. Mobile Column Lifting System

Each column is capable of lifting 13,200 pounds. In a tandem of 4, that means 52,800 pounds of lifting capacity.

Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns. TheMSC-13K-B is the iDeal Mobile Column Lift that comes with the latest lifting technology pre-installed.

Features

13,200 lb lifting capacity per column
Easy to use master controller for individual or paired synchronized operation
Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
Adjustable lifting forks accommodate the widest range of wheels
Easily positioned with pallet jack style wheel
Heavy-duty hydraulic system and large carriage bearings provide durable, fast and easy lifting
LCD screen with keyboard offers easy to read visuals of settings and lifting height
Independent mechanical locking system and emergency switch on each column provide highest safety assurance
Emergency switch on each column provide highest safety assurance
Optional jack stands are available
Requires qty of 8 12vdc Batteries Batteries are NOT Included
