BendPak HDS-40X Extended 4-Post Lift 40000LB Cap.

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
BendPak
RRP: $28,080.00
$23,495.00 (You save $4,585.00)
SKU:
5175178
Shipping:
Free Shipping
Minimum Purchase:
1 unit(s)
Expected release date is 6th Jul 2018

 Product Description


BendPak 4-Post Lift HDS-40X  Extended Lenght 40,000 LB Capacity  Heavy Duty Truck Lift
 BendPak's newest line of heavy-duty four-post truck lifts are here. Bigger sheaves, beefier components and a legacy of dependability--get your hands on these massive machines and bring a higher level of service to your garage or shop.

 Free Shipping Continental US
Direct shipping points only. Surcharge may apply to rural & interline points


*40,000-pound lifting capacity
*Overall 154" Wide
*Overall Lenght 357"
*Height of Colums 93"
*Lenght of Run Ways 323"
*Max Rise 60"
*Lifting Time 75 sec.
*Motor 220 VAC/1 Ph



pdf.catalog.jpg    pdf.instructions.jpg    ali-etl-logo.jpg 5-2-1-warranty.jpg

  Four-Post Lifts by BendPak

HD-40X

SKU# 5175178

40,000-lb. Capacity / Four-Post Lift / Extended


The HDS-40X is BendPak's heaviest-duty, extended-length truck lift. That makes it the most powerful offering in our formidable arsenal of auto lifting equipment. A rugged design with safety features unmatched in the industry, anyone working on massive commercial semis, municipal transport vehicles or military vehicles should consider this mighty machine.


Capacity

Lifting Capacity*40,000 lbs. (18,144 kg)
*Max Capacity / Front Axle 20,000 lbs. (9,072 kg)
*Max Capacity / Rear Axle 20,000 lbs. (9,072 kg)

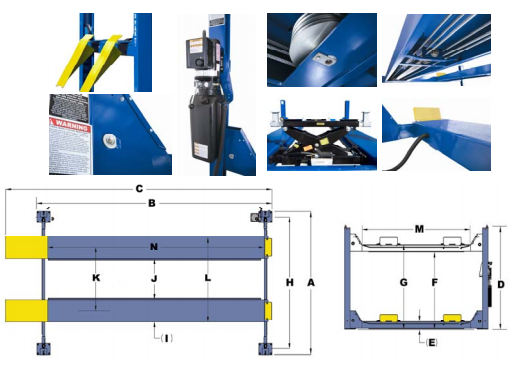

Rise

A - Min. Runway Height:8.5" (216 mm)
B - Max. Rise:60" (1,524 mm)
C - Max. Lifting Height:68.5" (1,740 mm)
Time to Full Rise:75 seconds

Outside Dimensions

D - Overall Width:154" (3,912 mm)
E - Outside Length:317" (8,052 mm)
F - Overall Length:357" (9,068 mm)
G - Height of Columns:93" (2,362 mm)

Inside Dimensions

H - Width Between Columns:134" (3,404 mm)
I - Drive-Thru Clearance:109" (2,769 mm)

Runways

J - Runway Width:28" (711 mm)
K - Length of Runways:323" (8,204 mm)
L - Width Between Runways:36" (914 mm) or 47" (1,194 mm)
M - Runway Centerline:64" (1,626 mm) or 75" (1,905 mm)
N - Outside Edge of Runways:92" (2,337 mm) or 103" (2,616 mm)

Minimum Wheelbase

Rated Capacity:230" (5,842 mm)
75% Capacity:195" (4,953 mm)
50% Capacity:165" (4,191 mm)
25% Capacity:130" (3,302 mm)

Locking

Locking Positions:9
Lock Spacing:Every 6" (152 mm)

Power Unit

Motor:220 VAC / 60 Hz / 1 Ph
Noise:45 dB

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.



Features

  • 40,000-lb. lifting capacity
  • Supersized 12" diameter cable sheaves
  • Stainless steel lifting cables
  • Extended length runways
  • Grease nipples
  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat
  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 12" x 12" base plates
  • Non-skid runways
  • Optional rolling jacks

BendPak's Strongest and Longest Beast of Burden

40,000 lbs. take a lot of muscle to lift, and many vehicles of this caliber are longer than our standard-length series of four-post lifts can accommodate. If you want to be prepared for the longest and heaviest vehicles on the road, you need BendPak's most impressive offering—and this is undoubtedly it. With runways that measure in at a whopping 323”, the HDS40X is the heaviest-duty extended-length car lift we make. Slap a bus on it and get to work, no sweat.

The power of this lift is no light matter. Military contractors, government entities on all levels and large commercial truck repair companies have all sought this lift out, knowing there's nothing they can throw at it that it can't handle. Far from being a hobby lift, this industrial-grade powerhouse is only going to fit in serious-minded commercial maintenance spaces. You'll need a big bay with high ceilings, and if you have that, the HDS-40X doubles as a parking lift and ultra-safe storage space.

Super-long runways

Super-duty vehicles need a clean approach and a wide runway to safely board a lift. At 28" wide, these runways accommodate tires of virtually any diameter and width. The non-skid surface is sure to grip tires and hold them in place, even if they get wet or oily during your work.

Dual-hub cable sheaves

BendPak cable sheaves are made to dominate every lifting application, however big or small. 12" diameter sheave bodies and 4" axles make them far more likely to last the lifespan of your lift because of their sheer size and quality of construction.

Large base plates

Truck lift base plates are made super-wide, which makes sense considering the size of the vehicles you're putting on the runways. 12 x 12 plate dimensions are extremely secure for maximum stability and lifting longevity.

Spring-loaded safety locks

13 lock positions offer up to 60" of rise for comfortable undercarriage access. All locks automatically engage during rise and disengage at the touch of a button. Just one look at the lock sizes will inspire confidence that this lift is safer than any you've ever seen.

Secondary lock system

The primary locks are more than enough security, but we don't leave a single, tiny thing to chance. So, we include a backup cable-slack detection system that captures loose cables immediately if slack develops. This system makes it entirely safe to remedy any issues without risking uneven platforms.

Rolling bridge jacks

Need to perform wheel service on your fleet? Of course you do. Pick up a pair of RBJ25000 bridge jacks and start working. Together, two jacks will lift a vehicle up to 50,000 lbs., but keep in mind the HDS14X has a 40,000-lb. limit. The extra 10K is not just peace-of-mind, but a practical consideration since the front half of most trucks (where the engine and transmission rest) is likely to be heavier than the back.



 Warranty Information

For more than a decade, America’s best lift has been coupled with the best warranty in the business. Instead of hiding behind a long veil of marketing fluff, we’re proud to deliver our warranty up front for all to see. To make sure we deliver our customers lifting products worthy of our 5-2-1 warranty, we developed our Design-Build-Quality-Deliver directive. This Zero-Tolerance for Defects initiative combined with our 5-2-1 Warranty is BendPak’s way of backing up what we claim. We employ a dedicated team of design engineers who are responsible for detecting and correcting any issue no matter how small before it gets to the customer. Five years is a long time, so we’ve got to get it right before we ship. The best warranty in the business gives you more than just peace of mind; it’s proof that we took a little extra care building your lift and every precaution was taken to maintain the highest degree of quality, dependability and reliability.

Duration: From the date of purchase by the original Purchaser or 60-24-12 months from the date of shipment by BendPak or whichever comes first.

» Five Years (60-Months) Bumper-to-Bumper Warranty on the lift structure
» Two Years (24-Months) Warranty on the hydraulic cylinder(s) and power unit
» One Year (12-Months) Labor Warranty on site or at factory
» One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
