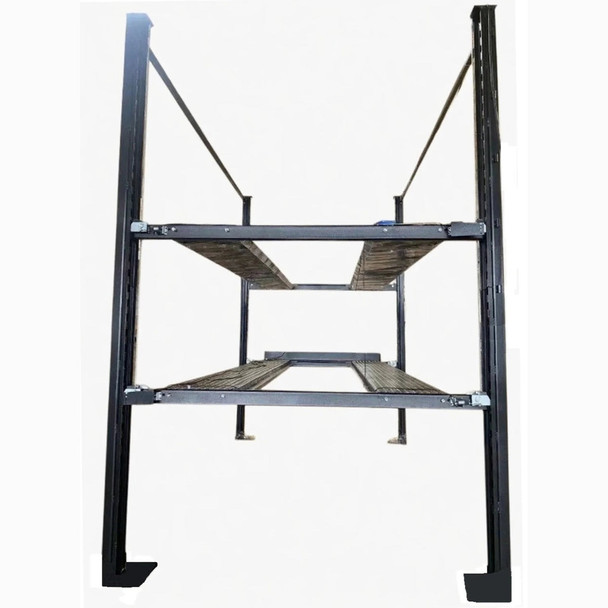

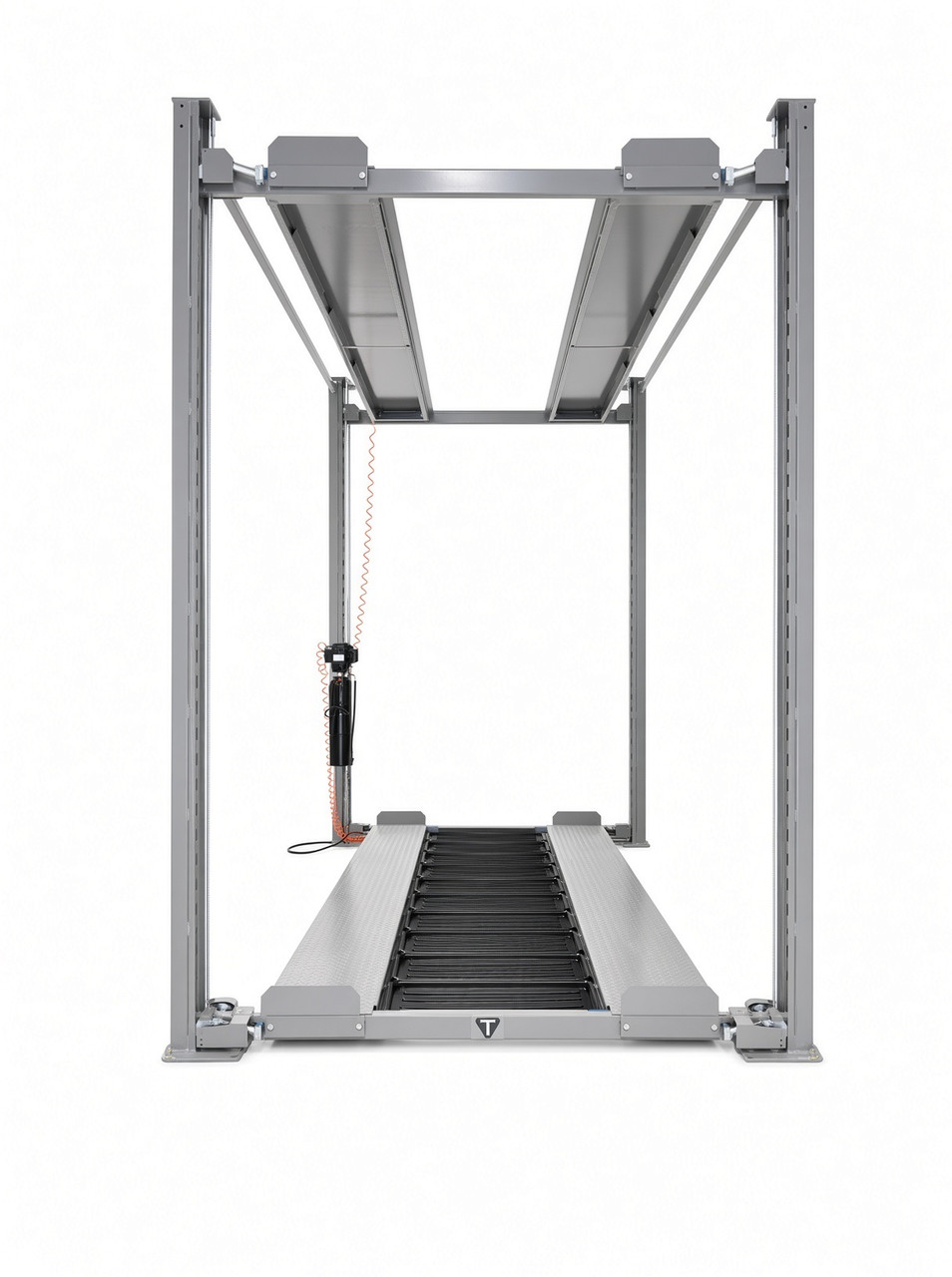

Triumph NSS-5x2 Triple -Stacker Four-Post Storage Lift

Shipping to the lower 48 United States!

Freight NOT included. please ask for freight quote with your ZIP

Forklift required to unload.

NSS-5x2 10,000 lb Service Storage Four Post Automotive Lift

Put 3 cars in 1 spot with this 5,000 lb capacity per vehicle double stacker. 2 cars in the air and 1 car on the floor. This lift comes with a 6 drip trays keep any fluid from the top vehicle from dripping on the bottom vehicle.  If you need to store 3 cars in 1 space this is the lift for you. Automatic electric locks that engage as you raise the vehicle.  The default standard color is Grey.

Shipping fees apply

NSS-5X2 Specifications:

• Model: NSS-5X2

• Total Capacity: 10,000 lbs (5,000 lbs per vehicle platform)

• Vehicle Capacity: 5,000 lbs each upper level

• Overall Height: 147"

• Overall Length Without Ramps: 199"

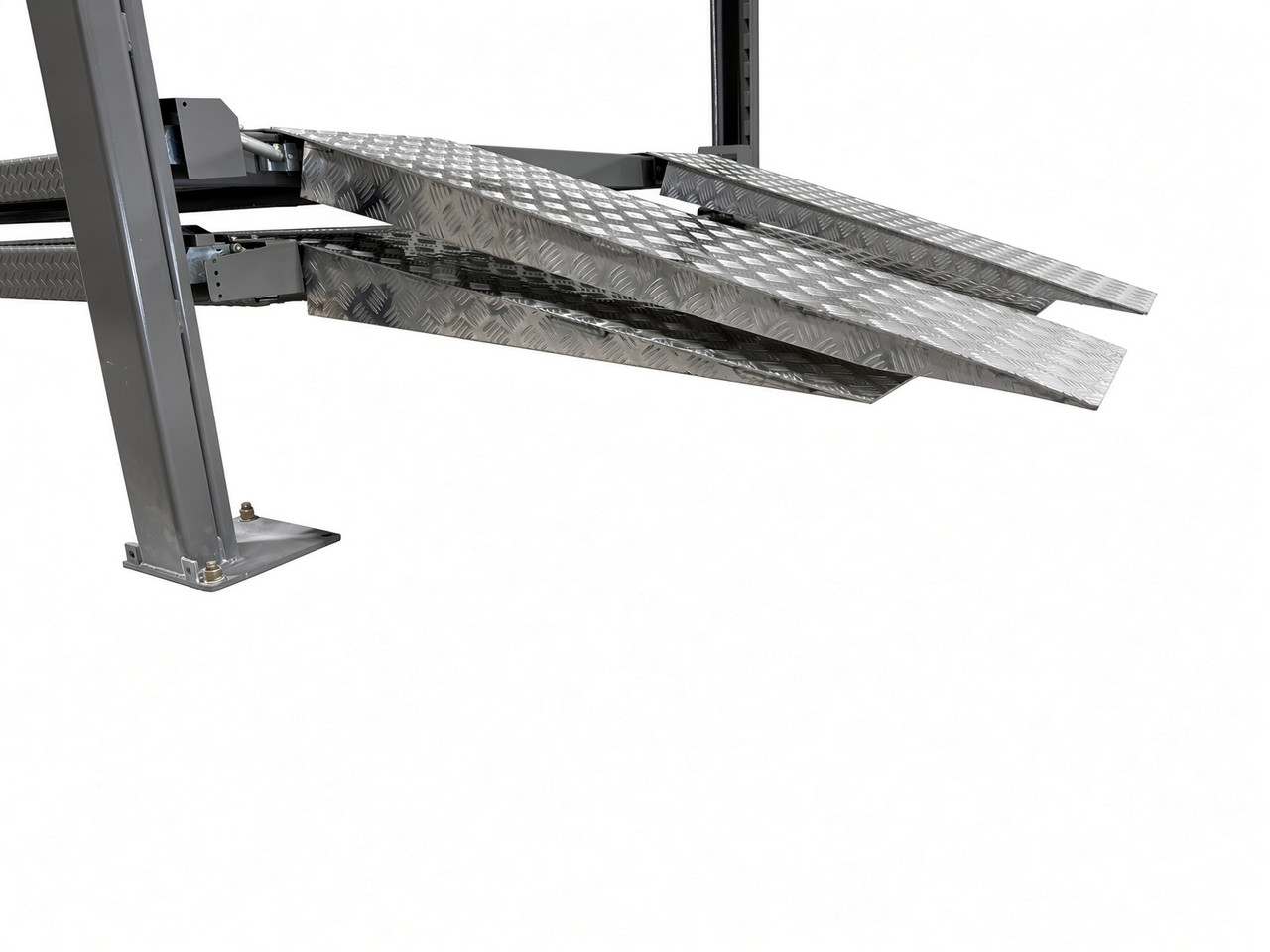

• Overall Length With Ramps: 225"

• Overall Width: 101"

• Lift Height - Top Vehicle: 143"

• Lift Height - Middle Vehicle: 71"

• Height Under Runway: 65.5"

• Runway Length: 180"

• Runway Width: 19"

• Width Between Runways: 37.5"

• Drive Thru Width: 93"

• Lowered Height: 5"

• Lock Release: Single Point 24 Volt Electric

• Lift Time: 125 Seconds

• Voltage: 110 Volts

• Shipping Weight: 3,500 lbs

• Hydraulic Fluid Requirement: AW32

• Ask about Custom Color Options!

Triumph Triple Lift Special Features:

• Stores 3 vehicles in the space of 1 parking area

• 5,000 lb capacity per vehicle platform

• Total 10,000 lb upper storage capacity

• Four-post double stacker design for superior stability

• Includes 6 drip trays to protect lower vehicles

• Automatic electric locks engage during lifting

• Single-point 24V electric lock release

• Drive-on design for easy loading and unloading

• 110V power for convenient installation

• Ideal for collectors, dealerships, garages, and storage facilities

• Durable steel construction for long-term use

• Required Anchoring System Included

• Ask about custom colors!
