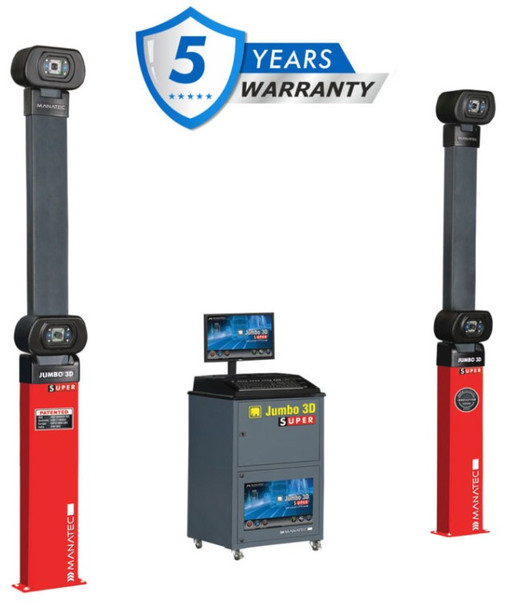

Manatec JUMBO-3D-SUPER-4A - Heavy Duty 3D Wheel Alignment Machine for Trucks, Buses & Trailers (Professional Installation & On-Site Training Included)

Hover over image to zoom

  • Image 1
  • Image 2
MANATEC USA
RRP: $45,000.00
$34,990.00 (You save $10,010.00)
SKU:
Manatec JUMBO-3D-SUPER-4A
Availability:
FACTORY SHIPPED
Shipping:
Free Shipping
Minimum Purchase:
1 unit(s)
Maximum Purchase:
1 unit(s)

 Product Description

Manatec JUMBO-3D-SUPER-4A - Heavy Duty 3D Wheel Alignment Machine for Trucks, Buses & Trailers (Professional Installation & On-Site Training Included)


  • World’s 1st 3D Wheel Aligner for Multi-Axle Trucks, Buses & Trailers.
  • Designed for alignment of Buses, Trucks, Trailers & Cars
  • One shot Runout compensation of all 6 axles.
  • One shot Caster swing for twin steer axles.
  • Simultaneous alignment up to 4 axles
  • Alignment of Trailers up to 8 axles in reverse parking by 2 steps
  • Innovative Image Processing technology.
  • No Electronics on Wheels.
  • Mobile stands for storing Wheel brackets & Targets.
  • Extra monitor provided to view screen underneath from the PIT.
  • Ideal for all workshops, tire shops & OEM end of line requirements.
  • Patented in USA
  • Low Maintenance Cost
  • Less technicians, simple operation
  • Made In India.
  • One Year Manufacturer Warranty
  • Professional Installation & On-Site Training Included.
Included Accessories:
  • 1 Set of PC, Monitor, Keyboard, Mouse & Windows OS
  • 8 Wheel Brackets for rim sizes 15" to 28"
  • 1 Brake Lock
  • 1 Brake Pedal Lock
  • 1 Steering Lock for Cars
  • 1 Steering Lock for Trucks, Buses & Trailers
  • 8 Target Plates
  • 4 Rotary Plates
  • 32 Rim Locking Pins with Adaptors
  • 2 Wheel Stoppers
  • 2 Three-Ton Target Stands
  • 1 Two-Ton Target Stand
  • 1 Four-Shaft Calibration Kit
  • 1 Secondary LED Monitor
Specifications:
  • Camber (Front / Rear) : ± 15° 00' (Accuracy: ± 00° 02')
  • Caster: ± 28° 00' (Accuracy: ± 00° 05')
  • Kingpin Inclination: ± 25° 00' (Accuracy: ± 00° 05')
  • Teo (Front / Rear):± 20° 00' (Accuracy: ± 00° 02')
  • Total Toe: ± 40° 00' (Accuracy: ± 00° 04')
  • Setback (Front/ Rear): ± 25mm (Accuracy: ± 2mm)
  • Scrub / Thrust Angle: ± 10° 00' (Accuracy: ± 00° 02')
  • Runout: ± 10° 00' (Accuracy: ± 00° 02')
  • Included Angle: ± 40° 00' (Accuracy: ± 00° 05')
  • Track Width difference : Actual (Accuracy: ± 2 mm)
  • Power Supply: 110V
  • Power: 250W
  • Operating Temperature: 32°F - 122°F

 Product Videos

3D Wheel Alignment - Manatec FOX 3D AUTOBOOM
  • 3D Wheel Alignment - Manatec FOX 3D AUTOBOOM
    Manatec launched the 'Auto Boom' model of 3D Wheel Aligner at ...
  • Jumbo 3D Super - Alignment Drill
    World’s 1st 3D Wheel Aligner for Multi-Axle Trucks, Buses & Tr...

 Warranty Information

One Year Manufacturer Warranty
