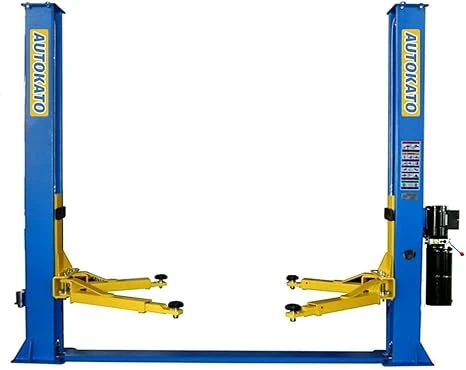

Katool KT-H115Z Symmetric 2 Post Floor-Plate Car Lift 11,000 lbs w/Low Profile Arms

 KT-H115Z  11,000Lbs  Base Plate 2-Post Car lift

• Powerful, Versatile, and Built for Professional Use

  The Katool KT-H115Z is a symmetric floor-plate 2-post car lift engineered to handle an impressive 11,000 lb. capacity, making it ideal for lifting a wide range of vehicles—from passenger cars and mid-sized SUVs to light-duty trucks. With low-profile swing arms and a minimum height of just 3.9 inches, this lift accommodates low-clearance sports cars and modern vehicles with ease, offering unmatched versatility in busy shops and home garages alike.

  CE certified and approved for international safety and quality standards, the KT-H115Z features dual hydraulic chain-drive cylinders that deliver smooth, consistent, and reliable lifting performance—even under heavy, repeated use. The symmetric installation provides balanced lifting for safer, more stable operation, while the two-point lock release system enables quick, safe, and efficient raising and lowering of vehicles.

  Designed with operator convenience in mind, this lift includes a manual safety release accessible from both sides, a top crossbar with limit switch that automatically stops the lift at its maximum height to help prevent vehicle damage, and rubber pad door-opening protection to safeguard doors and body panels during service. The durable powder coat finish in blue not only resists wear and corrosion but also improves visibility and aesthetics in any workspace.

  ---

  Key Highlights

  • 11,000 lb. lifting capacity handles light trucks, SUVs, and passenger vehicles with ease
  • Low-profile arms (3.9" minimum height) accommodate low-clearance sports cars and modern sedans
  • Symmetric floor-plate design provides balanced, stable lifting for safer vehicle service
  • Dual hydraulic chain-drive cylinders ensure smooth, reliable performance under heavy use
  • CE certified for international safety and quality standards, plus manual safety release from both sides

  ---

  What's Included

  Each Katool KT-H115Z lift comes complete with a set of drop-in adapters to provide flexibility when positioning vehicles and accommodate various frame and lifting-point configurations. These adapters help you safely lift a broader range of vehicle sizes and models with confidence.

  ---

  Technical Performance

  Featuring a maximum lifting height of 70.8 inches and an overall height of 110.9 inches, the KT-H115Z provides ample clearance for undercarriage service, tire and brake work, suspension repair, and exhaust system maintenance. The lift's 4.0 HP motor (220VAC / 60Hz / 1PH / 2.2Kw) raises vehicles in just 45-60 seconds, maximizing productivity without compromising safety.

  With two-stage swing arms, the front arms extend from 29.5" to 46", and the rear arms reach from 35.4" to 58.2", allowing you to adjust for different vehicle wheelbases and weight distributions. The 98.4-inch drive-thru clearance and 110.2-inch inside column spacing give you the flexibility to position vehicles precisely and work comfortably around them.

  ---

  Safety and Reliability

  Safety is paramount with the KT-H115Z. The lift's top crossbar with automatic limit switch stops upward travel at maximum height, helping to prevent accidental vehicle contact with overhead obstacles. The dual-sided manual safety release ensures that operators can quickly lower the lift from either column in an emergency, and the two-point lock system provides multiple secure hold positions during service.

  Constructed with a net weight of 1,257 lbs, this lift is built for long-term durability. The powder coat blue finish resists scratches, chips, and corrosion, maintaining a professional appearance year after year.

  Important Concrete Requirements:
  Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

  ---

  Understanding Two-Post Lift Capacities

  Not sure how weight capacity translates to real-world vehicle lifting? Katool provides a helpful guide to understanding two-post lift weight capacities. Click here to view or download the guide and learn more about safe lifting practices and vehicle weight distribution.

  Looking for full specifications and features?
  Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.

SHIPPING POLICY:

• Freight shipping ONLY within the lower 48 states.
• Free shipping to commercial addresses or freight terminals.
• Residential address or limited access is charged by carrier extra cost.
• This item is too heavy so the customer should consider a forklift to unload it.

• Buyers should inspect delivered the products carefully before signing the Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.

12 Months All Parts Warranty!
