Buffalo 14,000 Lbs 4 Post Open Front Alignment Lift FP14KO-A
No obstructions! The open front design on our alignment lift allows total access to front wheel adjustment points and with the cylinder located under the track, there's no power beam, eliminating risk of damage to doors and mirrors. (Shown with optional rolling jacks)

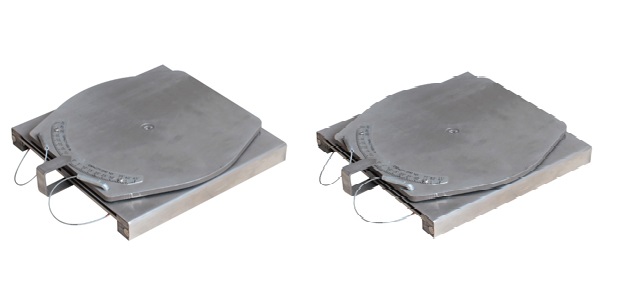

Turn Plates Included


Set of Turnplates included.
Rolling Bridge jacks optional
FP14KO-A
- 14,000 lb lifting capacity
- Cable drive
- Single point pneumatic safety release mechanism
- 20" wide non-skid, diamond plate runways
- Powder-coated paint finish
- C-channel construction
- Hydraulic Operation for minimum maintenance
- Three turntable positions for a wide range of vehicles
- Turntables included
- Rear slip plates mounted on roller bearings
- Fully adjustable lock stops for easy leveling
- Specs
- Manual



FEATURES
- Cable drive system
- Single point pneumatic safety release mechanism assures of safe lowering
- 20" wide runways are non-skid, diamond plated
- Durable Powder coated finish
- C-channel construction for maximum strength
- Hydraulic cylinder operation for minimum maintenance required
- Three turntable position pockets for a wide range of vehicle lengths
- Turnplates included
- Rear slip plates are included and are mounted on ring roller bearings for smoothness
- Locking positions are Fully adjustable for easy leveling
SPECIFICATIONS
Lifting Capacity Overall Length w/ramps Overall Width Width between posts Width of runways Width between runways Max wheel-base (2wheel) Max wheel-base (4wheel) Column Height Lifting Height Power Pack Shipping Weight
|
14,000 lbs 24'3" 11'6" 116" 20" 43" 208" 158" 7'8" 73" 2 hp 220/230vac 20a 4250lbs. |
