Star-a-Liner Hd-27 27' Six Tower Heavy Duty Truck Frame Racks

Name: Star-A-Liner Hd-27 27' Six Tower Heavy Duty Truck Frame Racks
Brand: Cheetah
SKU: 9012398
Price: 130145 USD
Availability: InStock

The HD Truck Rack Series from Star-A-Line is known for its quality and strength. These machines are 100% American made and features include: 25 Ton pull towers; electric hydraulics for precise pulling; 360-degree pulling radius; A50 steel for increased strength; and HD pull chains. The towers swing allowing for a quick set up, Star-A-Liner explained.. The Star-A-Liner HD Truck racks are available in 27-, 40-, 50- and 60-ft. models and have been used for many different needs including large trucks, tractors and trailers, articulating buses and fire trucks.

Product Description

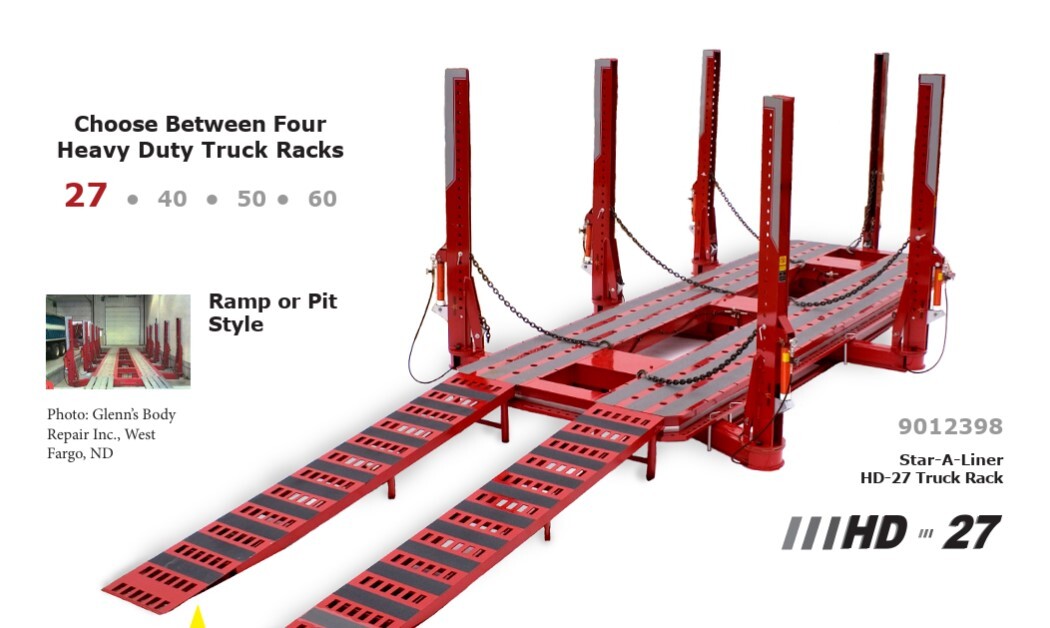

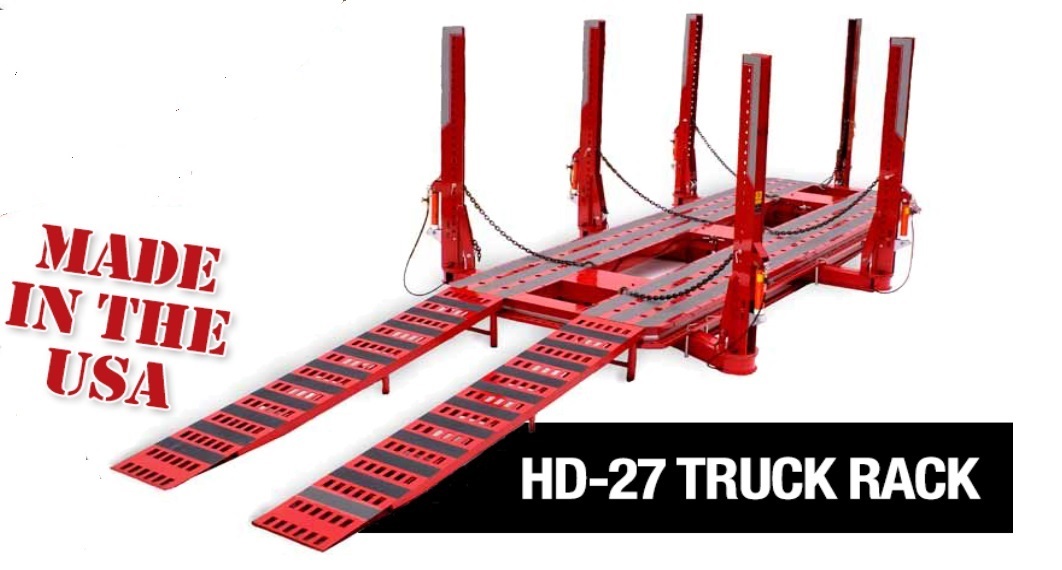

Star-A-Liner Hd-27 27' Six Tower Heavy Duty Truck Frame Racks

The Star-A-Liner HD-27 is a top-of-the-line collision repair frame rack specializing in larger vehicles and sports a 27-ft. bed. With 6 towers and 360 degrees of pulling radius, there is not much that this frame rack can't handle. Perfect for the shop looking to increase productivity, this frame rack makes pulling easy and precise.

Specifications

Length Of Bed (Top):	27 Ft. (823 Cm)
Number Of Towers:	6
Length With Towers Extended:	33 Ft. 6.25 In. (1,022 Cm)
Width Of Bed:	102 In. (259 Cm)
Width With Towers Extended:	201.5 In. (512 Cm)
Width Of Treadway:	36 In. (91 Cm)
Overall Height:	11 Ft. 8.50 In. (357 Cm)
Tower Height:	10 Ft. (305 Cm)
Working Height:	26 In. (305 Cm)
Power Required For Hydraulics:	110V 15 Amp
Pulling Power, Hydraulics:	25 Ton (23 Metric Ton)
Pulling Chain Diameter:	.625 In. (16 Mm)
Pulling Radius:	360 Degrees
