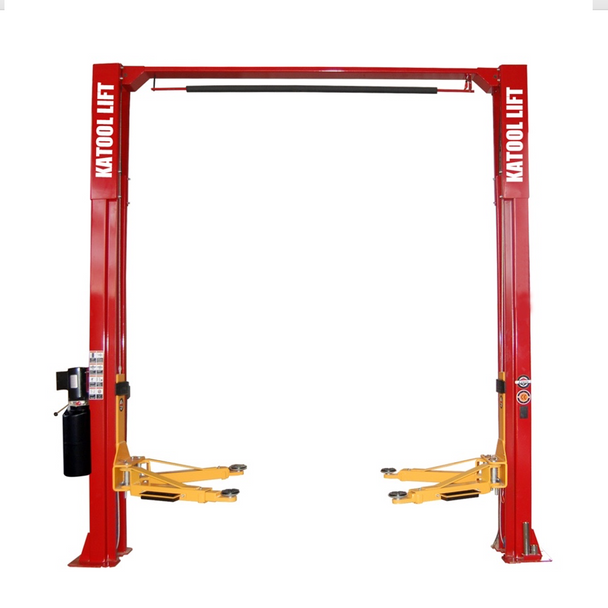

Katool KT-M110, 2 Post Clear-floor Vehicle Lift 11,000lbs

KT-M110  11000lbs Vehicle Lift

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

• 11000lbs lifting capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

• Symmetric clear-floor design

• Manual safety release from two sides

• Symmetric arm

• Dual Hydraulic Chain-Drive Cylinders

• Rubber pad door opening protection

• Comes with extension support adaptor sets of +30mm and +120mm

• Added overhead safety shutoff bar

• Feet-protection safety guardrails with tools box

• Top-level hydraulic system with 220V/60HZ/1PH (110V/60HZ/1PH OPTIONAL ADD-ON PURCHASE $199)

KT-M110, 2 Post Clear-floor Vehicle Lift by Katool

Challenging car care routine slowing you down? Let the Katool KT-M110 do the heavy lifting for you! It boasts a massive 11,000-lb lifting capacity, making it the ideal choice for professional mechanics and serious car enthusiasts who service or collect a vareity of vehicles. The symmetric clear-floor design leaves you with a spacious work area while the manual safety release is accessible from both sides for added convenience and control. Protect vehicles from door dings with the included rubber pad door opening protection.

Dual hydraulic chain-drive cylinders and symmetric arms ensure smooth, balanced lifting, while the top-level hydraulic system operates on either 220V or optional 110V power sources for maximum flexibility. Servicing a wide-range of vehicles? The KT-M110 offers versatility with extension support adaptor sets of 1.2"and 4.75". An overhead safety shutoff bar prevents overextension accidents, and feet-protection safety guardrails with "an integrated toolbox keep your workspace organized and free of unwanted clutter. With the Katool KT-M110 Vehicle Lift, you can tackle any car care job with ease.

2 Post Lift KT-M110 Specification:

• Lifting Capacity: 11,000 lbs (5000 kg)
• Max. Lifting Height: 70.75"
• Min. Height: 4.25"
• Height Overall: 141.25"
• Width Overall: 142.25"
• Outside Column: 128"
• Inside Column: 110.25"
• Drive-Thru Clearance: 94.5"
• Front Arm Reach (Min): 30.75" (2 stages)
• Front Arm Reach (Max): 50.5" (2 stages)
• Rear Arm Reach (Max): 50.5"(2 stages)
• Motor: 220VAC/60HZ/1PH/2.2KW
• Oil: AW-46 or AW-32 (colder climates)

KT-M110 From Katool Special Features:

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
• Symmetric clear-floor design
• Manual safety release from two sides
• Symmetric arm
• Cable Thickness: 3/8"
• Dual Hydraulic Chain-Drive Cylinders
• Rubber pad door opening protection
• Included Support Adapters: 1.2" & 4.75"
• Added overhead safety shutoff
• Feet-protection safety guardrails with tools box
• Power: 220V/60HZ/1PH - Standard Option; 110V/60HZ/1PH* - $249 upcharge

*Must be wired to a circuit with 10-gage wire and a 30-amp breaker

• Katool Warranty:
  • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
  • Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

Katool KT-M110 Documentation:

SHIPPING POLICY:

• Freight shipping ONLY within the lower 48 states.
• Free shipping to commercial addresses or freight terminals.
• Residential address or limited access is charged by carrier extra cost.
• This item is too heavy so the customer should consider a forklift to unload it.

• Buyers should inspect delivered the products carefully before signing the Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.

12 Months All Parts Warranty!
