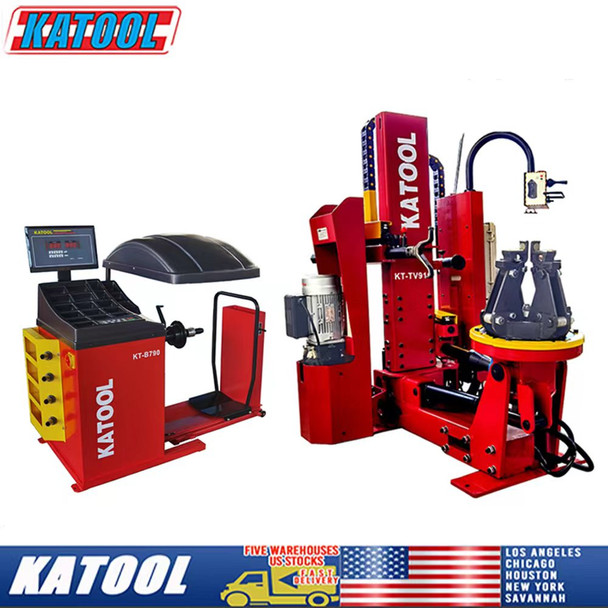

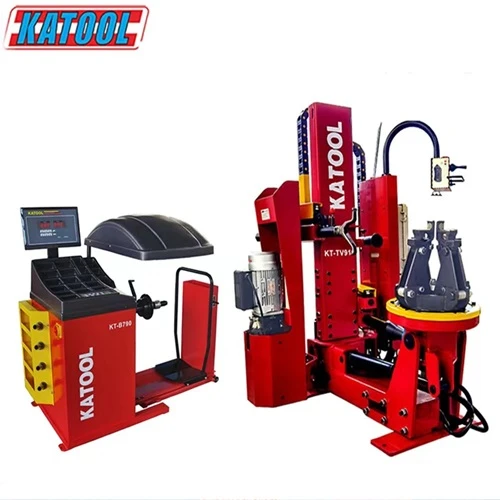

Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790

Write a Review
SKU:
Combo KT-VT-910-B790
UPC:
Combo KT-VT-910-B790
Condition:
New
Availability:
Factory Shipped
Shipping:
Free Shipping
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
  • Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790
$8,349.00

Description


Katool Combo KT- VT-910-B790 Tire Changer and Wheel Balancer KT-B790




KT-TV910 Heavy Duty Truck Tire Changer Machine

  • Heavy-duty electro-hydraulic tire changer for Trucks, Busses, tractors, and earth-moving vehicle tires
  • Large clamping capacity to externally clamp wheels up to 42 inches or as small as 14 inches in diameter to maximize service flexibility.
  • Multifunctional control, allows the user to operate in any position safely
  • Powerful, precise, and quick: a beak and disk- it ensures the bead on wheels is particularly strong, even on the most delicate rims
  • Ergonomically positioned foot pedals and helper controls located at the point of use minimize training and opportunities for error.
  • Low voltage electric components ensure user complete safety
Outer Rim 14'' - 42''
Max Wheel Diameter 63'' / 1600mm
Max Wheel Width 31'' / 780mm
Working Pressure ≤130 bar
Power Supply 220V 1PH/60HZ
Hydraulic Motor  3.0 KW (***4.0 HP Motor***)
Max Flow of Oil for Hydraulic Motor 315
Max Tire Weight 3306lbs / 1500KG
Net Weight 1256lbs / 570KG
Shipping Weight 1388lbs / 630KG
Shipping Dimension 51'' x 43'' x 72'' / 1300mm x 1100mm x 1830mm)
Noise Level  < 70 DB(A)



Car Wheel Balancer KT-B790:

Wheel Rim Diameter:

                                                   10"-28"

                               Wheel Rim Width:

                                                   1.5"-20"

Balancing Speed:

180rpm (car wheel) / 90rpm (truck wheel)

Operation Noise:

≤69db

Power Supply:

220v 1PH/60HZ

Motor Power:

0.55KW

Wheel Weight:

≤ 200KG

Net weight:

460lbs



SHIPPING POLICY:

  • Freight shipping ONLY within the lower 48 states.
  • Free shipping to commercial addresses or freight terminals.
  • Residential address or limited access is charged by carrier extra cost.
  • This item is too heavy so the customer should consider a forklift to unload it.
  • Buyers should inspect delivered the products carefully before signing the Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.



12 Months All Parts Warranty!
