iDeal UF-2500EH-X 2500 Lbs ELECTRIC / HYDRAULIC UTV FRAME

Write a Review

SKU:: UF-2500EH-X ‘pro-series’
UPC:: UF-2500EH-X
Condition:: New
Availability:: FACTORY SHIPPED
Shipping:: $375.00 (Fixed Shipping Cost)

On Sale

$3,700.00

$4,070.00

Current Stock:

Quantity:

Description
Warranty
Reviews (0)

Description

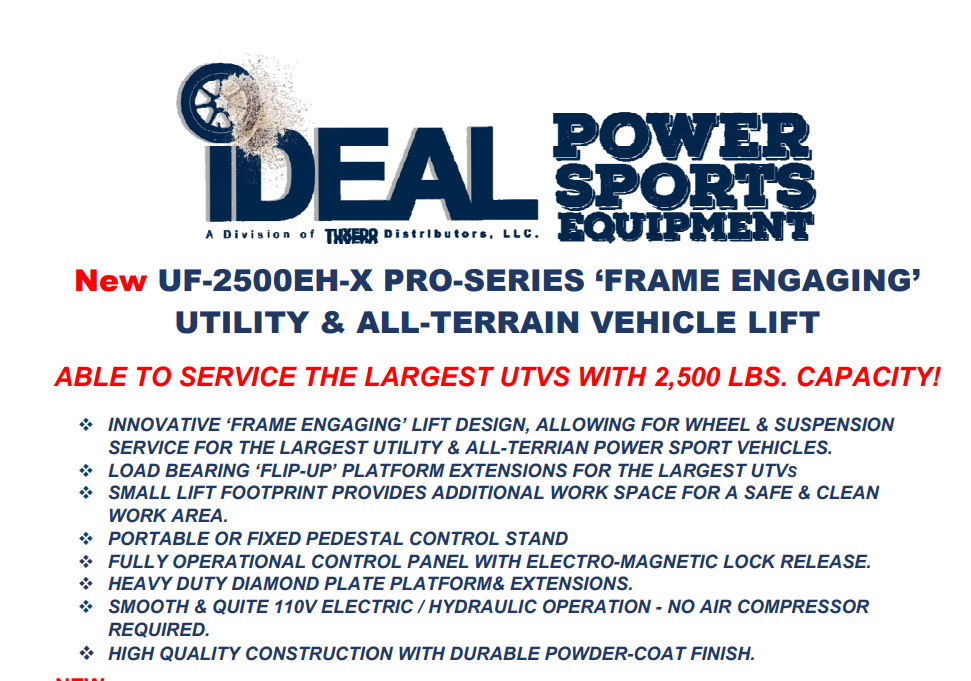

iDeal UF-2500EH-X 2500 Lbs ELECTRIC / HYDRAULIC UTV FRAME

ELECTRIC / HYDRAULIC UTV FRAME

UF-2500EH-X

UF-2500EH-X ‘pro-series’

iDEAL, Electric / hydraulic utv frame lift

Exclusive ‘wheels free’ design for the largest UTVs to smallest ATVs.
Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE
2,500 lbs capacity
43″ RISE HEIGHT (49” w/ rubber lift pads)
24″W X 88.9″L PLATFORM SIZE
4.75” MIN. HEIGHT
smooth & rapid 110V Electric / Hydraulic operation
fully operational control panel W/ ELECTRO-MAGNETIC LOCK RELEASE
three locking positions
Heavy-Duty Diamond Plate Platform & extension Construction
LOAD BEARING ‘HINGED’ PLATFORM EXTENSIONS
PORTABLE OR MOUNTED PEDESTAL stand
Power unit cover w/ storage bin
RUBBER CONTACT LIFT PADS – 4.75” X 6.5” (4EA)
Options: WHLSTDKIT-UF2500EH-X

Specifications

Lift Model	UF-2500EH-X
Capacity	2,500 lbs
Min. Height	4-3/4″
Max Lifting Height	43″
Overall Length w/ Ramp	67″ – 88-7/8″
Overall Width	24″
Platform Size (L x W)	67″ x 24″
Lifting Time	25S
Lowering Time	25S
Power	110V, 60Hz, 1 PH-18A
Ship Weight	740 lbs

View AllClose

Warranty Information

1 year, parts only warranty. Ideal belongs to the very best at offering the warranty / parts support that you need. Ideal stocks over half a million dollars worth of replacement parts in their warehouse in TX. so we know that taking care of warranty is key to keeping our customers happy.
