Ideal CK-FP14KA with CX-IWA-60-2000T-K and RAJ-7K-H Combo

CK-FP14KACX-IWA-60-2000T-K 14,000 lb Alignment Lift Bundle by iDeal

Looking for a powerful, all-in-one alignment setup? Look no further! The iDEAL FP14KAC-X 14K-4 Post Alignment Lift is here to take your shop’s game to the next level. With a 14,000 lb capacity and a maximum wheelbase of 182.5 inches, this beast is perfect for everything from compact cars to hefty trucks. And with 18 locking height positions, a cable lift system, and 20-inch-wide runways, it delivers stability and flexibility every step. The best part? The “bolt-on” runway alignment kit makes setup a breeze.

Teamed up with the iDEAL 3D iPRO Wheel Aligner, you get alignment accuracy down to 0.01 degrees, thanks to high-resolution cameras that work like magic. The aligner’s portable design makes it easy to switch between bays, and its loaded database of vehicle specs means you’re ready for any job. Add the Tuxedo RAJ-7K-H 7K Rolling Air Jack into the mix, and you’ve got a dream team for lifting and adjusting with ease. This high-mount jack slides effortlessly along the rails, giving you smooth, on-rail adjustments with up to 7,000 lbs of lifting power. Drooling already? We understand.

4 Post Alignment Lift FP14KAC-X Specification

• Lift model: FP14KAC-X
• Capacity: 14,000 lbs
• Overall length with ramp: 252-1/2"
• Overall width (without power unit): 131-7/8"
• Overall width (with power unit): 142"
• Overall height: 92-1/2"
• Max rise height: 79-1/2"
• Min height: 9-7/8"
• Width between posts: 116-1/4"
• Length between posts: 196"
• Width between runways: 43" or 46"
• Width of runways: 20"
• Max wheelbase: 182-1/2"
• Max alignment wheelbase (2-wheel): 166-3/4"
• Min / Max alignment wheelbase (4-wheel): 103" / 157"
• Ramp length: 44"
• Max clearance under runway: 69-5/8"
• Drive-thru clearance: 100"
• Base plate: 10-1/2" x 9"
• Power requirement: 220V - 20 Amp 1 PH
• Ship weight: 3,810 lbs
• Minimum bay size: 16' x 25'

Wheel Aligner System IWA-60-2000T-K Specification

• Aligner Model: IWA-60-2000T-K
• Aligner Type: 3D 'Wide Scope' Imaging
• Operating System: Windows 10
• Software: Techno Vector 7
• Accuracy: 0.01 Degrees
• Certification: CE
• Target Size (4): Standard
• Cameras: 2 (High Resolution / Wide Scope)
• Lift Compatibility: 4 Post or Scissor Alignment Lift required
• Standard Wheel Clamps (4): 12" - 24"
• Toe Adjustment: Yes
• Raised Mode: Yes
• Live Caster: Yes
• Runout Compensation: Yes
• Wheel Alignment Mode: Yes
• Database Update: Yes
• Customer Manager: Yes
• Product ships from Montana & Includes training
• Lift Range Height: 35" to 67"
• Max Wheelbase: Up to 13' (157.5")
• Power Requirement: 120V - 15 Amp / 1 PH / 60 Hz
• Ship Weight: 500 lbs (2 pcs)

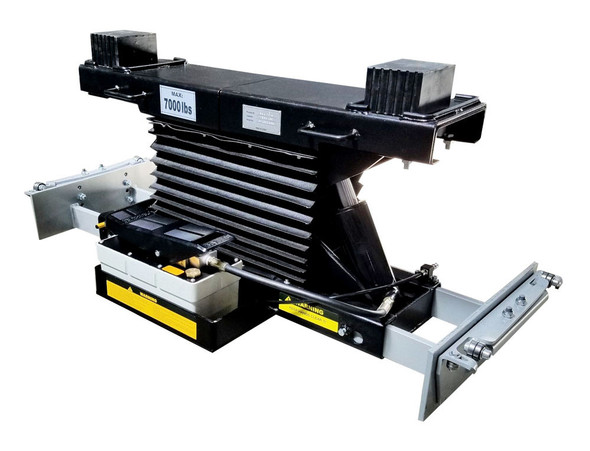

Rolling Air Jack (High Mount) RAJ-7K-H 7K  Specifications:

• Capacity: 7,000 lbs
• Mount Type: High Mount, designed for low-position jack rails
• Roller Body Operation: Dual spring-loaded with roller bearing wheels for smooth on-rail rolling
• Support Arms: Telescoping and locking for stability and precise positioning
• Operation: Air/hydraulic for efficient and smooth lifting
• Locking Height Positions: Two positions for flexible lifting options
• Adapters: Includes rubber height adapters (set of 2)
