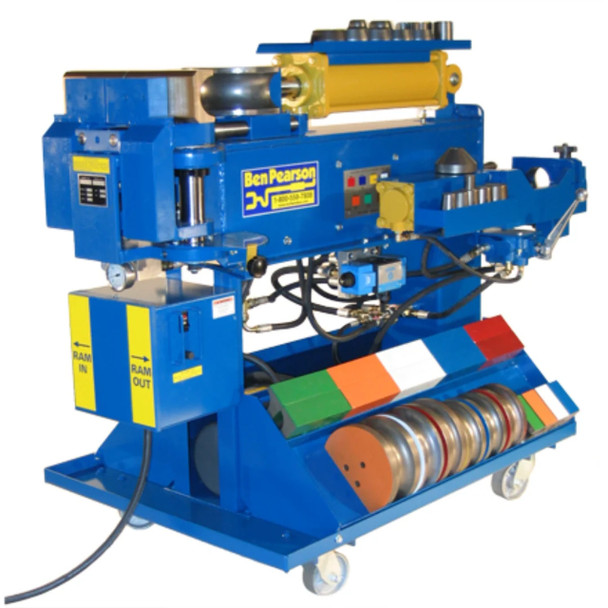

Huth Ben Pearson MC59 Pipe Bender

Huth Ben Pearson MC59 Pipe Bender

The MC59 Ben Pearson Bender from Huth-Ben Pearson is truly the ultimate in bender technology. The MC59 pipe bender is popular for its versatility, ease of use, and efficiency. With convenient color-coded dies and automatic depth-of-bend, retraction of ram die, and motor cut-off, the MC59 Ben Pearson Bender is straightforward and user-friendly.

Incorporating state-of-the-art pipe bending technology, the MC59 leads the industry in operator convenience features: 180° bend on a 5" radius, 3" bending capability, and a rugged electrical and hydraulic system that will perform over the long haul. Plus, the MC59 offers two end-of-pipe systems for quick and easy operation.

Features

• Bend depth capacity of 180° on a 5" radius.
• Unique die design eliminates the possibility of radius die locking behind the back shoe.
• Bending capability through 3"
• Quick-change, color-coded dies for ultimate convenience and efficiency.
• The MC59 has a spring-loaded die carriage.
• Precise bends with the knee-controlled ram die.
• Energy-efficient dual-stage hydraulic pump.
• Automatic depth-of-bend, retraction of ram die, and motor cut-off.
• 220-volt single phase, 60-cycle (three-phase, 50-cycle, and other voltages are also available).
• The MC59 has a heavy-duty 4 HP motor built to last.

Optional Tooling (*Sold separately):

• Super 110 Die Package
• Super 120 Die Package
• Super 120-7 Die Package
• Super 150 Die Package

Downloads

 Operations Manual

 Flyer
