Atlas® RJ-35 Sliding Hydraulic Center Jack 3500 Lbs. Capacity and Truck Adapters

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10
  • Image 11
  • Image 12
ATLAS
RRP: $1,250.00
$1,079.00 (You save $171.00)
SKU:
XH-PROJACK35
Availability:
FACTORY SHIPPED
Shipping:
Free Shipping

 Product Description

Atlas® RJ-35 Sliding Hydraulic Center Jack 3500 Lbs. Capacity and Truck Adapters










  • 3,500 LB. capacity
  • Manually operated
  • Scissor mechanism allows for level lifting
  • Compact size with a low profile
  • Adjustable width fits most four post lifts
  • Safety lock positions
  • Adapters included
  • Powder coated finish
  • Commercial grade
  • Adapter storage
  • Shipping Weight: 350 LBS.
The Atlas® RJ-35 (3500 LB. capacity) sliding hydraulic vehicle jack is the perfect choice for the owner of the Atlas® Garage Pro 8000. The Atlas® RJ-35 Sliding Jack will also fit the Atlas® Garage Pro 9000. TheAtlas® RJ-35 Sliding Jack is for those who want to perform wheel service on a vehicle that is positioned on top of their four post lift.

The complete Atlas® Garage Pro 8000 four post lift comes with a jack tray.The jack tray has certain limitations that are eliminated by using the Atlas® RJ-35 Sliding Jack. The jack tray (with a small floor jack or jack stands) will support ONLY THOSE LIFTING POINTS of the raised vehicle that are between the runways of the Atlas® Garage Pro 8000 four post lift. The Atlas® RJ-35 Sliding Jack has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS (that are located over the runways of the four post lift) of the vehicle allowing the operator to access many more LIFTING POINTS than just using the jack tray.

The Atlas® RJ-35 Sliding Jack comes standard with a set of peg style truck adapters which increase the lifting height of the lift pads. These truck adapters will allow the Atlas® RJ-35 Sliding Jack sliding hydraulic jack to raise pick up trucks that will sit higher on the runways than the average passenger car. The Atlas® RJ-35 Sliding Jack is operated by a manual hydraulic pump (porta-power pump) and does not require an air compressor for power. TheAtlas® RJ-35 Sliding Jack sliding hydraulic jack also features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Atlas® RJ-35 Sliding Jack are engaged, the hydraulic pressure from the lifting cylinder of the RJ-35 Sliding Jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

Finally, the versatile Atlas® RJ-35 Sliding Jack is adjustable to fit between the runways of many of the other four post lifts that have been sold in the last several years.

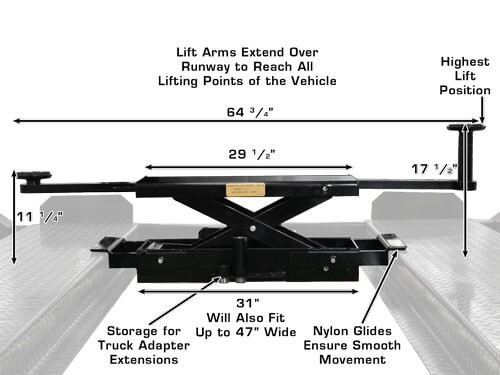

Atlas® RJ-35 Sliding Jack Specifications
Capacity 3,500 LB.
Minimum Width 29 1/2"
Minimum Width with Arms In 39 1/2"
Maximum Width with Arms Out 64 3/4"
Minimum Height with Lift Pad 3 1/2"
Lifting Pad 1 3/8"
Short Adapter 1 1/4"
Tall Adapter 5"
Raised Height without Adapter 11"
Raised Height with Small Adapter 12 1/4"
Raised Height with Large Adapter 16"
Raised Height with Small and Large Adapter 17 1/4"
Shipping Weight 350 LBS.
