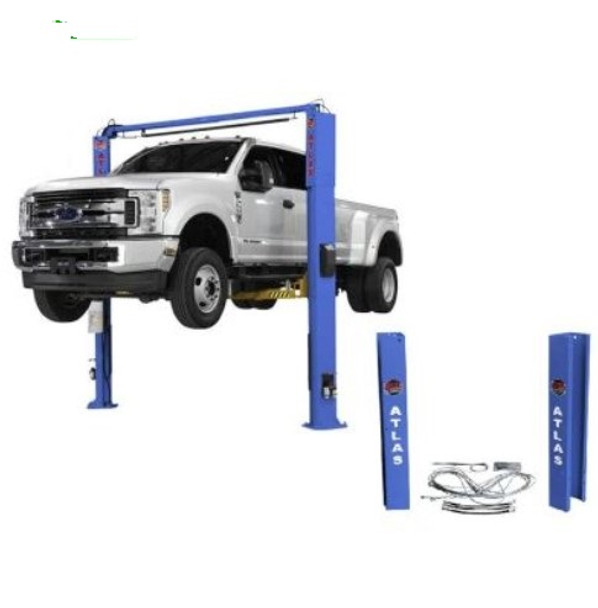

Atlas® Platinum PVL10 w/ Extension Kit

Features and Benefits:

ALI Certified Lift
10,0000 lb. Capacity
2 Foot Height Extension Kit Included
Column design with special Double “S” bends increasing column strength
Can be installed Symmetrically OR Asymmetrically
Overall Height: 135 7/8? (11? 3 7/8?) or 139 7/8? (11? 7 7/8?) (Cylinder Height 12? 4?)
Padded Carriages
3-Stage Front Arms & 2-Stage Rear Arms
Single-Point Lock Release
Powder Coat Finish
Includes Double Screw-up Adapters
Free 8 Piece Truck Adapter Set
Mounting Hardware Included
Standard with Premium ALLY Power unit
Shipping Weight: 1,850 lbs.
5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Powerunit Warranty
This part number FREIGHT PREPAID

The Atlas® Platinum PVL10 is a 2-post 10,000 lb. capacity ALI Certified commercial grade lift designed with the professional shop in mind. The Platinum PVL10 was engineered and built to offer a commercial grade above ground lift to those customers who have “fallen in love” with the reliability offered by the Double S column design and symmetric columns. Tens of thousands of above ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. The Double S column design was so revolutionary, that it was protected by a patent. That patent has now expired.

The Atlas® Platinum PVL10 can be installed with the columns positioned symmetrically or asymmetrically. When the columns are installed in an asymmetric configuration exiting and entering the vehicle is easier and reduces the chance or getting dings or scratches in the door. When the columns are installed in a symmetric configuration the width between the columns is wider, allowing wider trucks and SUVs to use the lifts with ease. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design.

The Atlas® Platinum PVL10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage, rubber column guards, and a price that cannot be matched.

This product also features an ALLY Hydraulic AL2850 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

Atlas® Platinum PVL10 Specifications

Capacity 10,000 LB.
Overall Height 159 7/8" (13� 3 7/8”) or 163 7/8” (13� 7 7/8”) ‐ (CYLINDER EXTENDS TO 12� 4”)
Overall Floor Width 139" (11� 7”) Asymmetric/137 1/2” (11� 5 1/2”) Symmetric
Outside Column to Outside Column 130" (10� 10") Asymmetric/129 1/4” (10� 9 1/4") Symmetric
Maximum Lift Height (Without Adapters) 72 1/2"
Maximum Lift Height (With Adapters) 81 1/2"
Minimum Arm Height 4"
Inside Column 107 3/4” (8� 11 3/4”) Asymmetric/ 112 1/2" (9� 4 1/2") Symmetric
Drive Thru 91” Asymmetric/99 1/2” Symmetric
Column Size 7" x 10 1/4"
Column Thickness of Steel 6mm
Base Of Lift 15" x 18"
Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 2,000 LBS.
Adapter Heights 4 Each 3”, 6”
Arm Hole/Adapter Peg Size 2”
Requires a minimum of 4" of concrete with a 3000 ps

View AllClose

Videos

View AllClose

Warranty Information

ATLAS Equipment Sales offers a two year LIMITED structural parts warranty on all Atlas Lifts. Atlas Equipment Sales warrants the equipment to the original purchaser against defects in material or workmanship under normal use for a period of one year from the date of purchase. This limited warranty shall be limited to the repair or replacement of materials or parts found defective, at the discretion of . Our LIMITED warranty policy (two year parts only) does not include a labor warranty. Our products are sold at such a competitive price that Atlas Equipment cannot afford to send technicians into the field to repair the Atlas wheel balancers. We assume that the buyer of our wheel balancer is mechanically inclined or has employees that are mechanically inclined. Our wheel balancers are built with “plug and play” parts that make repairs very easy. This is the same philosophy that the Personal Computer Industry has used for many years. We offer a toll free number (800-768-4104) for service and parts information. This toll free number is directed to Atlas Indianapolis, IN. location. The service and parts department is open from 8 am to 5 pm EST from Monday to Friday. The department is SOMETIMES open on Saturdays, subject to the availability of our service technicians. There are certain parts that are considered “wear items” and are NOT included in the one year warranty. Parts that have been subjected to abuse will NOT be considered for warranty. REPEAT: IF YOU ABUSE YOUR WHEEL BALANCER (LIKE PLUG A 110 VOLT CORD INTO A 220 VOLT OUTLET, USE YOUR WEIGHT HAMMER INSTEAD OF YOUR FINGERS TO ENTER PARAMETERS INTO THE KEYPAD, OR DRIVE YOUR CAR INTO THE SIDE OF THE BALANCER AND BEND THE SHAFT) THEN THE WARRANTY ON YOUR BALANCER IS VOID. If you think that a wheel balancer should perform flawlessly for many years WITHOUT a normal amount of maintenance; then do not buy our wheel balancer. You are living in a fantasy world. Our LIMITED warranty policy (one year parts) requires the alleged defective part to be returned to Atlas Equipment Sales (freight ppd.-customer pays the freight) BEFORE the replacement part can be sent out. If the defective part is an integral part of the machine, and the loss of this part will not allow the machine to work properly, Atlas Equipment Sales can waive the “normal” return policy in certain situations so there is minimal down time for the operator. If necessary Atlas Equipment Sales can charge the customer’s credit card for the replacement part when the part is shipped and then credit the amount of the part when the defective part is returned. To expedite a part replacement or exchange, the use of a digital photo is the best answer. If the customer will furnish Atlas Equipment Sales with digital photos that identify a broken part or some other issue; then our service techs may waive the need for an old part to be returned. The replacement part can be shipped the same day. A digital photo leaves nothing to the imagination. Our service technicians can only help if they are provided with the most accurate information. We encourage the use of digital photos to help speed the process. Atlas Equipment has a service department with an excellent reputation. The old adage that compares the attitude of the customer to the type of service received rings true for Atlas Equipment Sales. We sell quality products with very few warranty issues. When there is a warranty issue (or an out of warranty issue) we want to get the customer back in business as quickly as possible. A good attitude from the Atlas service technician coupled with a positive attitude from the customer will produce a satisfactory outcome for both parties. Returned goods must be authorized to be returned (in writing) by Atlas Equipment Sales and must be prepaid to a designated location. All returns are subject to a 15% handling/restocking charge. Returned goods must be in like-new condition complete with warranty and original shipping papers. If you have any questions about our products or warranties, please ask your sales representative.
