ATLAS

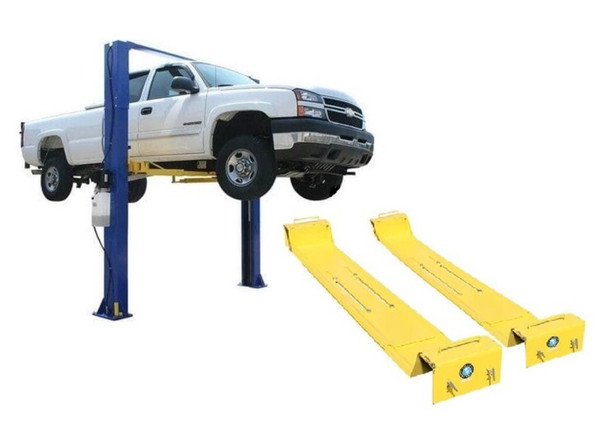

Atlas® 9KOHX + Lawnmower Adapter Combo

Write a Review
SKU:
ATEXH-9KOHX-COMBO-FPD
UPC:
ATEXH-9KOHX-COMBO-FPD
Availability:
Usually ships in 48 Hrs
Shipping:
Free Shipping
On Sale
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
  • Atlas®  9KOHX + Lawnmower Adapter Combo
$5,799.00
$5,099.00
$5,799.00
— You save $700.00

Description



Atlas® 9KOHX + Lawnmower Adapter Combo

Features and Benefits:

  • Combo includes 9KOHX 9,000 lb. capacity lift and Lawn Mower Adapter
  • Overhead, Open-Floor design
  • Overall Height: 138" (11' 6") or 142" (11' 10")
  • Asymmetric/Symmetric Arms
  • Automatic Arm Restraints
  • Dual-Point Lock Release
  • Rubber Guards on Carriages
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System
  • Free 8 Piece Truck Adapter Set
  • Free set of Sliding Arm Adapters
  • Mounting Hardware Included
  • This part number FREIGHT PREPAID

The light duty Atlas® 9KOHX lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUV's and light duty trucks. The 9KOHX can be adjusted to two different height settings, either 11' 6" or 11' 10", allowing it to fit in almost any standard garage.

The Atlas® 9KOHX has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® 9KOHX two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the 9KOHX is less then 9,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.

The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.

Atlas® 9KOHX Specifications

  • Capacity 9,000 LB.
  • Overall Height 138" (11' 6") or 142” (11' 10”)
  • Overall Floor Width 134 1/2" (11' 2 1/2")
  • Outside Column to Outside Column 124 7/8" (10' 4 7/8")
  • Maximum Lift Height (Without Adapters) 74 1/2"
  • Maximum Lift Height (With Adapters) 81"
  • Minimum Arm Height 4"
  • Inside Column 110” (9' 2”)
  • Drive Thru 100” (8' 4”) Symmetric/ 90 1/2" (7' 6 1/2”) Asymmetric
  • Column Size 7 1/4" x 11"
  • Column Thickness of Steel 5mm
  • Base Of Lift 14 1/4" x 18"
  • Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
  • Shipping Weight 1,450 LBS.
  • Adapter Heights 4 Each 1.5”, 5”
  • Arm Hole/Adapter Peg Size 1.5”
  • Requires a minimum of 4" of concrete with a 3000 psi. rating

    The Atlas® LMA Specifications (VARY BY LIFT AND WHEELBASE):

    • Capacity: Up to 5,000 lbs
    • Adjusts in Width: 8' to 11'
    • Wheel Base: 32" to 90"
    • Wheel Well Width: 12"
    • Thickness of Steel: 3/16"
    • Shipping Weight: 600 lbs.
    • Will fit lift arms up to 5 1/2" wide
View AllClose

Warranty Information

ATLAS Equipment Sales offers a two year LIMITED structural parts warranty on all Atlas Lifts. Atlas Equipment Sales warrants the equipment to the original purchaser against defects in material or workmanship under normal use for a period of one year from the date of purchase. This limited warranty shall be limited to the repair or replacement of materials or parts found defective, at the discretion of . Our LIMITED warranty policy (two year parts only) does not include a labor warranty. Our products are sold at such a competitive price that Atlas Equipment cannot afford to send technicians into the field to repair the Atlas wheel balancers. We assume that the buyer of our wheel balancer is mechanically inclined or has employees that are mechanically inclined. Our wheel balancers are built with “plug and play” parts that make repairs very easy. This is the same philosophy that the Personal Computer Industry has used for many years. We offer a toll free number (800-768-4104) for service and parts information. This toll free number is directed to Atlas Indianapolis, IN. location. The service and parts department is open from 8 am to 5 pm EST from Monday to Friday. The department is SOMETIMES open on Saturdays, subject to the availability of our service technicians. There are certain parts that are considered “wear items” and are NOT included in the one year warranty. Parts that have been subjected to abuse will NOT be considered for warranty. REPEAT: IF YOU ABUSE YOUR WHEEL BALANCER (LIKE PLUG A 110 VOLT CORD INTO A 220 VOLT OUTLET, USE YOUR WEIGHT HAMMER INSTEAD OF YOUR FINGERS TO ENTER PARAMETERS INTO THE KEYPAD, OR DRIVE YOUR CAR INTO THE SIDE OF THE BALANCER AND BEND THE SHAFT) THEN THE WARRANTY ON YOUR BALANCER IS VOID. If you think that a wheel balancer should perform flawlessly for many years WITHOUT a normal amount of maintenance; then do not buy our wheel balancer. You are living in a fantasy world. Our LIMITED warranty policy (one year parts) requires the alleged defective part to be returned to Atlas Equipment Sales (freight ppd.-customer pays the freight) BEFORE the replacement part can be sent out. If the defective part is an integral part of the machine, and the loss of this part will not allow the machine to work properly, Atlas Equipment Sales can waive the “normal” return policy in certain situations so there is minimal down time for the operator. If necessary Atlas Equipment Sales can charge the customer’s credit card for the replacement part when the part is shipped and then credit the amount of the part when the defective part is returned. To expedite a part replacement or exchange, the use of a digital photo is the best answer. If the customer will furnish Atlas Equipment Sales with digital photos that identify a broken part or some other issue; then our service techs may waive the need for an old part to be returned. The replacement part can be shipped the same day. A digital photo leaves nothing to the imagination. Our service technicians can only help if they are provided with the most accurate information. We encourage the use of digital photos to help speed the process. Atlas Equipment has a service department with an excellent reputation. The old adage that compares the attitude of the customer to the type of service received rings true for Atlas Equipment Sales. We sell quality products with very few warranty issues. When there is a warranty issue (or an out of warranty issue) we want to get the customer back in business as quickly as possible. A good attitude from the Atlas service technician coupled with a positive attitude from the customer will produce a satisfactory outcome for both parties. Returned goods must be authorized to be returned (in writing) by Atlas Equipment Sales and must be prepaid to a designated location. All returns are subject to a 15% handling/restocking charge. Returned goods must be in like-new condition complete with warranty and original shipping papers. If you have any questions about our products or warranties, please ask your sales representative.
