Rotary SM18-L Heavy Duty Surface Four Post Lift

Hover over image to zoom

  • Image 1
Rotary Auto Lifts
RRP: $13,500.00
$10,800.00 (You save $2,700.00)
Free Shipping

 Product Description

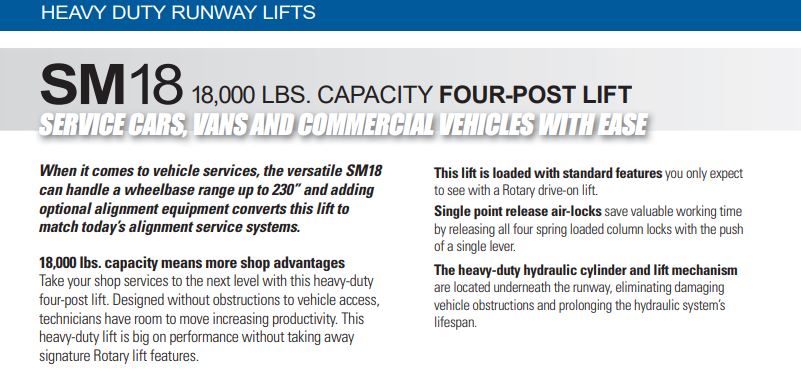

Rotary SM18 Heavy Duty Surface Four Post Lift
SM-18-L 18,000 lbs.


For decades, Rotary has been the recognized leader in vehicle service lifts.  This legendary reputation has set the standard for quality, durability, reliability and attention to safety throughout the automotive service market.

Versatility: it's the standard to which Rotary Lift's four-post lifts are built. These lifts handle cars, vans, trucks - even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

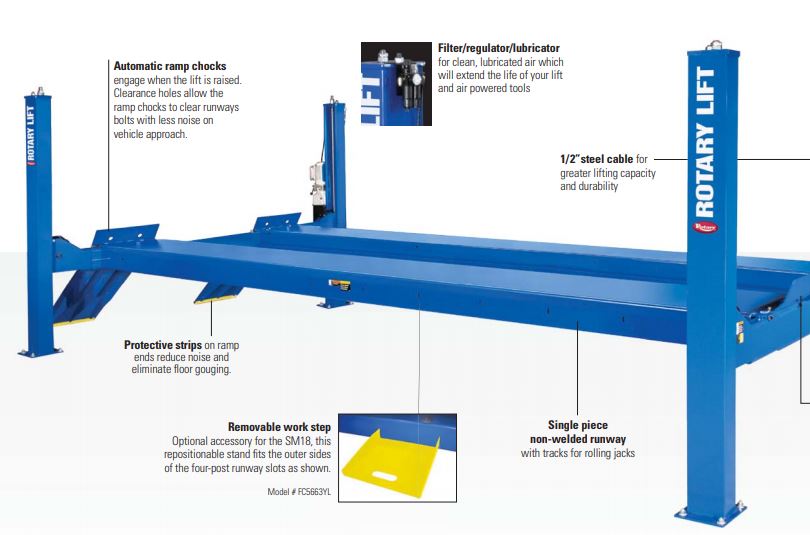

  •  Cylinder located under the runway
  •  Dual function Sentinel Lock™ System
  •  Air Filter/Regulator/Lubricator
  •  Adjustable latch bars
  •  Single piece non-welded runway with tracks for rolling jacks
  •  ALI Gold Certified (SM18LO-X)


pdf.catalog.jpg  ali-etl-logo.jpg

Image 1

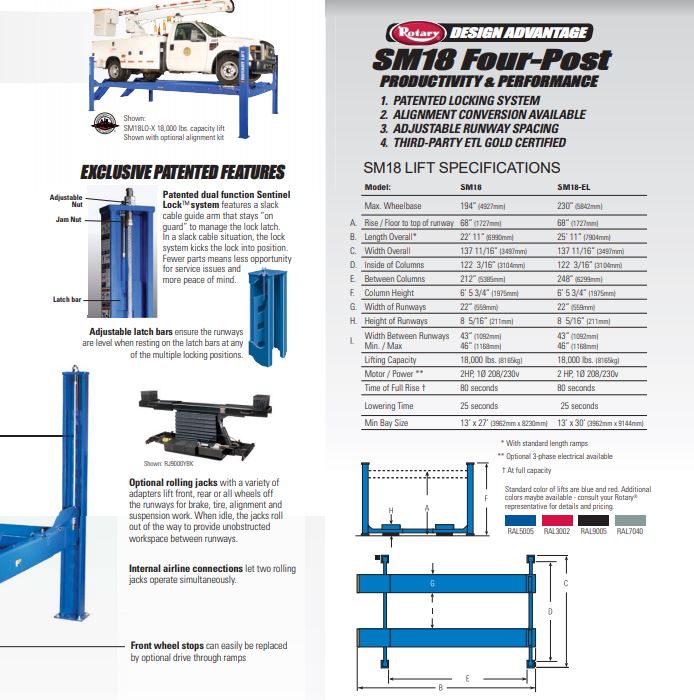

Specification SM18-L SM18-EL
Max. Wheelbase 194" 230"
Rise 68" 68"
Length Overall 22' 11 3/16" 25' 11 3/16"
Width Overall 11' 5 3/4" 11' 5 3/4"
Inside of Columns 121 1/2" 121 1/2"
Between Columns 212" 248"
Height of Columns 6' 5 3/4" 6' 5 3/4"
Width of Runways 22" 22"
Height of Runways 7 1/2" 7 1/2"
Width Between Runways (max.) 46" 46"
Lifting Capacity 18,000 lbs. 18,000 lbs.
Motor 2 HP 2 HP
Voltage Single Phase 208v-230v 208v-230v
Time of Full Rise 100 seconds 100 seconds
Min. Bay Size 16'x27' 16'x30'





Drive On Brochure


 Warranty Information

Factory Warranty
