Nussbaum SPL10000MXL2S Asymmetric Clearfloor 10,000 Lbs. Two Post Lift w/ Two Stage Arms - Extra Tall 160"

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
Nussbaum USA
RRP: $4,990.00
$4,299.00 (You save $691.00)
SKU:
SPL1000MXL2S
Availability:
FACTORY SHIPPED
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
* This is a Plus Shipping Item and I will be contacted w/ shipping costs:
* Specify Color Black or Blue:

(Maximum Size: . Type: )

 Product Description





Item No:SPL1000MXL2S
Lifting capacity:10000 lb
Type 2 post lifts
Color Black

Nussbaum ETL Certified 2 Post Lift, 10,000 lb capacity, width 124", height 160" Extra Tall , 2 stage arm with screw adjustable adaptors

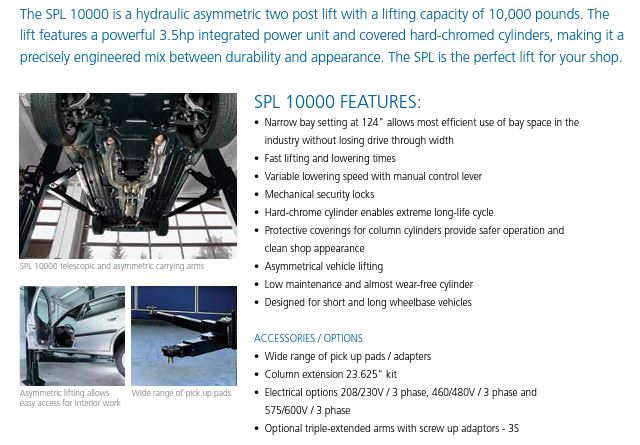

The SPL 10000 is an ALI Certified hydraulic asymmetric two post lift with a lifting capacity of 10,000 pounds. This two post lift features a powerful 3.5hp integrated power unit and covered hard-chromed cylinders, making it a precisely engineered mix between durability and appearance. The SPL 10000 two post lift is the perfect automotive lift for your shop. With our manufacturing facility in North Carolina now in full production, these two post lifts are readily available for fast delivery and proudly MADE IN THE USA.

Nussbaum is an ALI certified lift  pdf.catalog.jpg

SPL 10



SPL 10 is an ALI Certified hydraulic asymmetric two post lift with a lifting capacity of 10,000 pounds and 3-stage arms. This two post lift features a powerful 3.5 hp integrated power unit and covered hard-chromed cylinders, making it a precisely engineered mix between durability and appearance.

The SPL 10 two post lift is the perfect automotive lift for your shop. With our manufacturing facility in North Carolina, these two post lifts are readily available for fast delivery and proudly MADE IN THE USA.

The SPL 10 with it’s TRUE asymmetric design has virtually the same drive thru width as other lifts but has an overall width up to 20″ narrower than the competition.

For long life and durability, only hard steel hydraulic lines are used. They will not wear and age like flexible hydraulic hoses!

The SPL 10 contains a high performance power unit with adjustable lowering speed through a single control lever, which allows for safer lifting and lowering! And the lift automatically shuts off when it reaches highest position, or at the highest vehicle height, eliminating pump fatigue.



SPL 10 TWO POST LIFT FEATURES:

  • 3-Stage arm design enables you to position vehicle doors in front of or behind columns to avoid door damage and provide you with added reach
  • Narrow bay setting at 124 ″ allows the most efficient use of bay space in the industry without losing drive through width
  • Fast lifting and lowering times
  • Variable lowering speed with manual control lever
  • Mechanical security locks
  • Hard-chrome cylinder guarantees extreme long-life cycle
  • Productive coverings for column cylinders provide safer operation and clean shop appearance
  • Asymmetrical two post vehicle lifting
  • Low maintenance and almost wear-free cylinder
  • Designed for short and long wheelbase vehicles



Packaging Wooden crate
Product Dimensions 160in x 42in x 20in
Total weight 1700lb

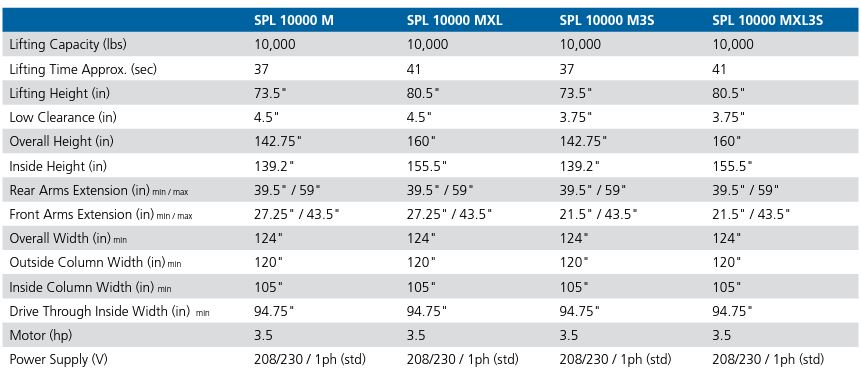

SPL TWO POST LIFT TECHNICAL DATA

 Model
SPL 10000 MXL
Lifting Capacity (lbs) 10,000
Lifting Time Approx. (sec) 41
Lifting Height (in) 80.5″
Min Adapter Height (in) 4.5″
Overall Height (in) 160″
Inside Height (in) 155.5″
Long Arms Extension (in) min/max 39.5″ / 59″
Short Arms Extension (in) min/max 27.25″ / 43.5″
Overal Width (in) min 124″
Outside Column Width (in) min 120″
Inside Column Width (in) min 105″
Drive Through Inside Width (in) min 94.75″
Motor (hp) 3.5
Power Supply (V) 208/230 / 1ph (std)



 Warranty Information

NUSSBAUM lift products are warranted to the original owner to be free of defects due to original factory materials and workmanship. The standard NUSSBAUM product policy for lifts provides a seven (7) year structural parts warranty, two (2) year warranty for non-structural parts.
