Ideal Package FR-55 Scissor Frame Straightener- 20-Pc Tool Board included.

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
Ideal Equipment
RRP: $12,250.00
$10,324.00 (You save $1,926.00)
SKU:
Combo FR-55-TBK20
Weight:
2,948.00 LBS
Shipping:
Free Shipping
I have a way to get this off the truck, this item fits not on a lift gate !:

 Product Description



Ideal Combo  Package FR-55 Frame Straightener- 20-Pc Tool Board included.









toolboard-for-fr-55.jpgpdf.catalog.jpg pdf.instructions.jpg







Factory shipped from a warehouse near you.
This item ships by truck and you must have a way to unload the truck!
This item will not fit on a Liftgate!







.viewbrochureblue.jpg dowbloadmanualblue.jpg



This item ships by truck and you must have a way to unload the truck! This item will not fit on a Liftgate!

Features:

  • Universal positioning swivel lifting arms for full service.
  • 4 wheel support benches to simplify clamp set-up.
  • Pull tools and board standard.
  • 6 ton heavy-duty post with single point locking and multi-angle pulling

Specifications:
Model Number: FR-55
Lifting Capacity: 5,500 lbs
Deck Height: 4 3/4 - 63"
Deck Length: 128 5/8"
Deck Width: 37"
Hydraulic System Pressure: 10,000 psi (max)
Net Weight: 2948 lbs

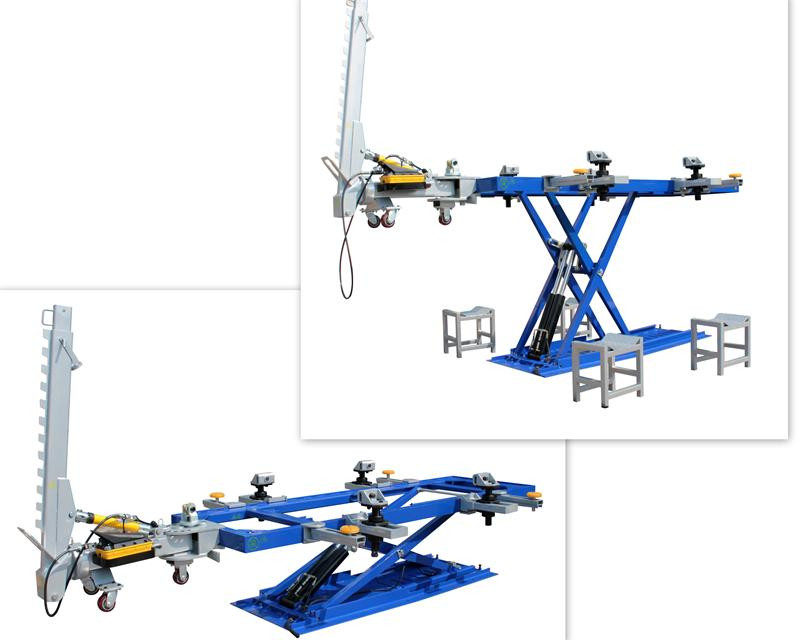

The FR-55 Scissor Lift & Frame Rack is a unique, high quality, compact frame straightening machine with the versatility of an automotive lift designed to service full-frame or uni-body type vehicles with its 5,500 lb. lifting capacity. The FR-55 incorporates a 10-ton multi-angle/adjustable height pull tower with 360 degree pulling capability. Along with adjustable height clamping assemblies and universal positioning swivel arms & lift pads. Come standard with a pull chain with hook and wheel stands.

Nationwide FR-55 Portable Console Cabinet Nationwide FR-55 pull tower

Portable Console Cabinet
Portable console cabinet for lift operation with remote hand help pendant.

10-Ton Puller Tower
Sloted/adjustable height pull tower with mulit-angle, 360 degree pulling capability

Nationwide FR-55 Adj Pinch Weld

Adjustable Pinch Weld
Adjustable height pinch weld/clamp assemblies & lift pads.




Features
  • Designed to service full-frame or uni-body typed vehicles
  • Unique, compact & versatile design
  • Scissor lift operation with Twin Hydraulic cylinders
  • Durable, heavy-duty constructions with powder coat finish
  • Portable console cabinet for lift operation with single point pneumatic lock release
  • remote "hand held" pendant for lift operation
  • Universal positioning swivel lifting arms for full service
  • 10-ton sloted/adjustable height pull tower with integrated down pull roller
  • Mulit-angle, 360 degree pulling capability
  • Adjustable height pinch weld/clamp assemblies
  • Quick disconnect hydraulic fitting & hose connection
  • Adjustable height pinch weld/clamp assemblies

Includes

  • (1) HQ Air/Hydraulic pump with pressure gauge
  • (1) Pull chain with hook
  • (4) Wheel Stands

20 Piece Tool & Clamp Kit FR-55-TBK20 included



 Warranty Information

BUFFALO COMES WITH a 1 year, parts only warranty.
BUFFALO belongs to the very best at offering the warranty / parts support that you need. BUFFALO stocks over half a million dollars worth of replacement parts in their warehouse in TX. so we know that taking care of warranty is key to keeping our customers happy.
